Description
The Huawei LUNA2000-S1 is a high-voltage modular battery designed for residential energy storage systems. Its scalable design allows it to adapt to various energy needs, offering flexibility and efficiency in solar energy management.
Main features:

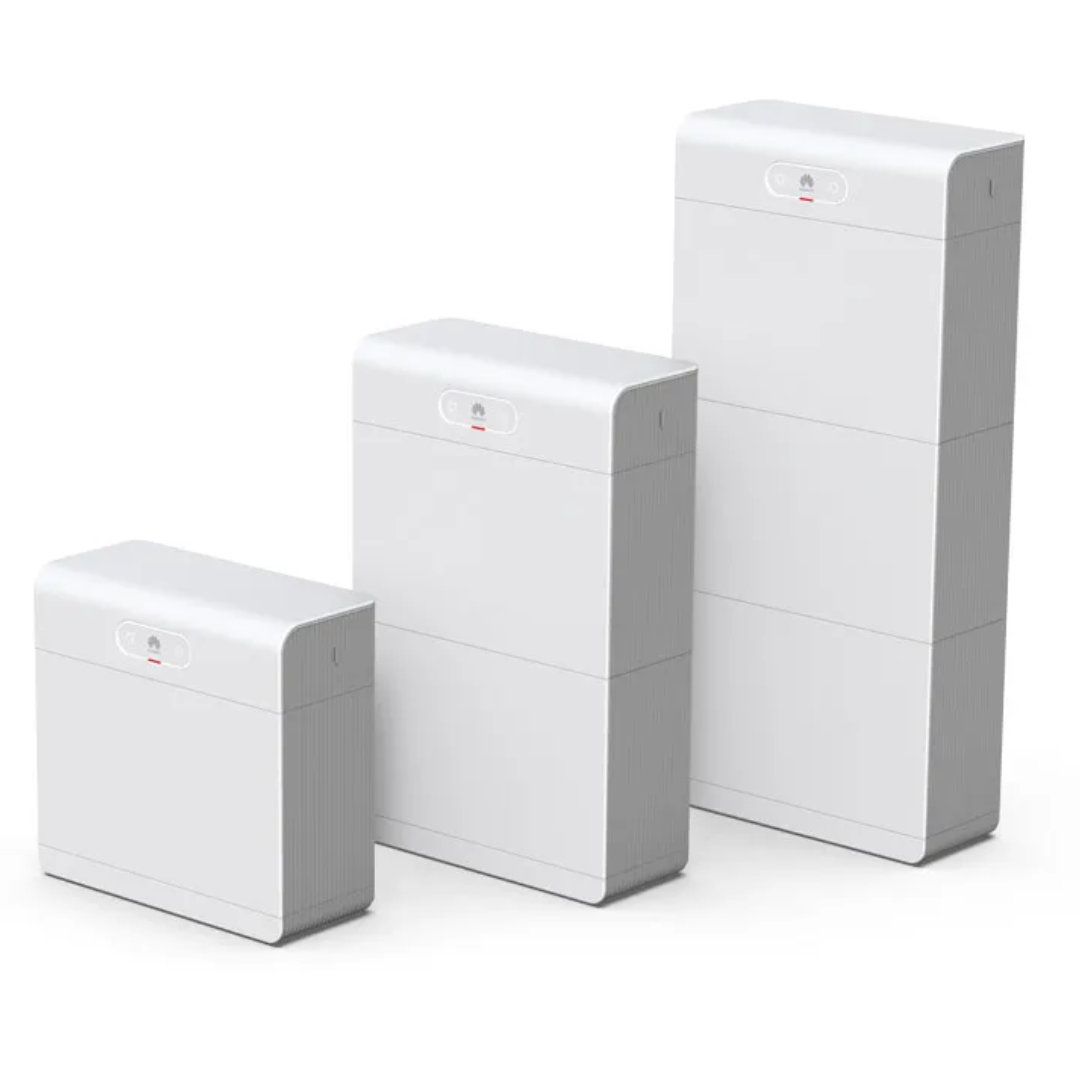

- Scalable capacity: The LUNA2000-S1 allows connection of up to 3 battery modules, reaching a total capacity of up to 20.7 kWh.
- Wide compatibility: It is compatible with SUN2000 series inverters, including models such as SUN2000-2~6KTL-L1, SUN2000-8~10K-LC0, SUN2000-3~10KTL-M1 and SUN2000-12~25K-MB0.
- Efficiency and performance: Provides a useful energy of 6.9 kWh per module and a maximum charging and discharging power of 3.5 kW, ensuring a constant and efficient energy supply.
- Installation and protection: Designed for floor mounting, it has IP66 protection, ensuring resistance to adverse environmental conditions.
- Extended warranty: Provides a 15-year product warranty upon registration on the FusionSolar portal; without monitoring, the warranty is 5 years.

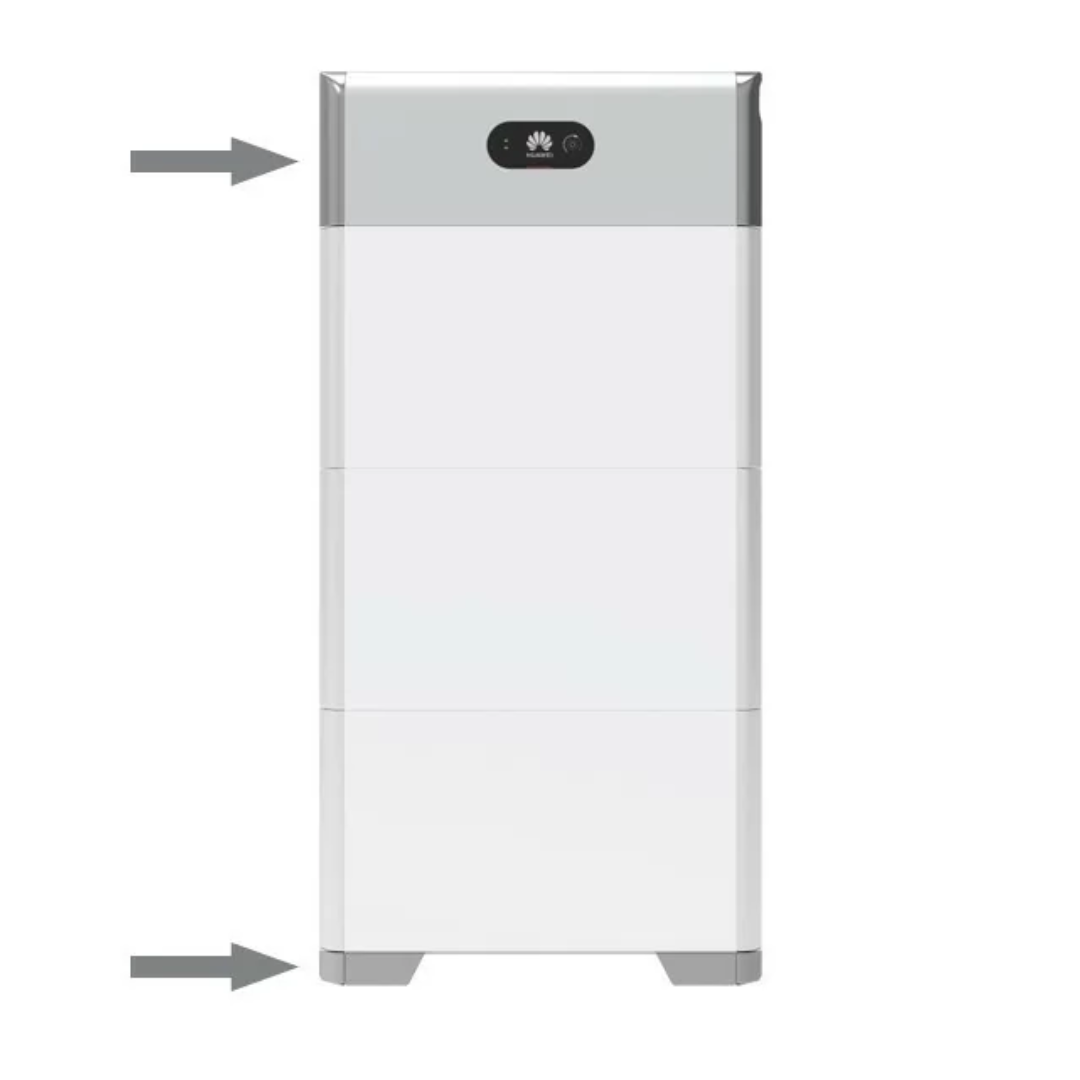

Technical specifications of the base and control module:
- Dimensions: 59.0 x 25.5 x 15.0 cm (59.0 x 25.5 x 15.0 cm).
- Weight: 10 kg
- IP protection: IP66
- Communication RS485 (Inverter)
- Compatible inverter: Huawei
- Battery installation Floor mounting
- Product warranty 15 years

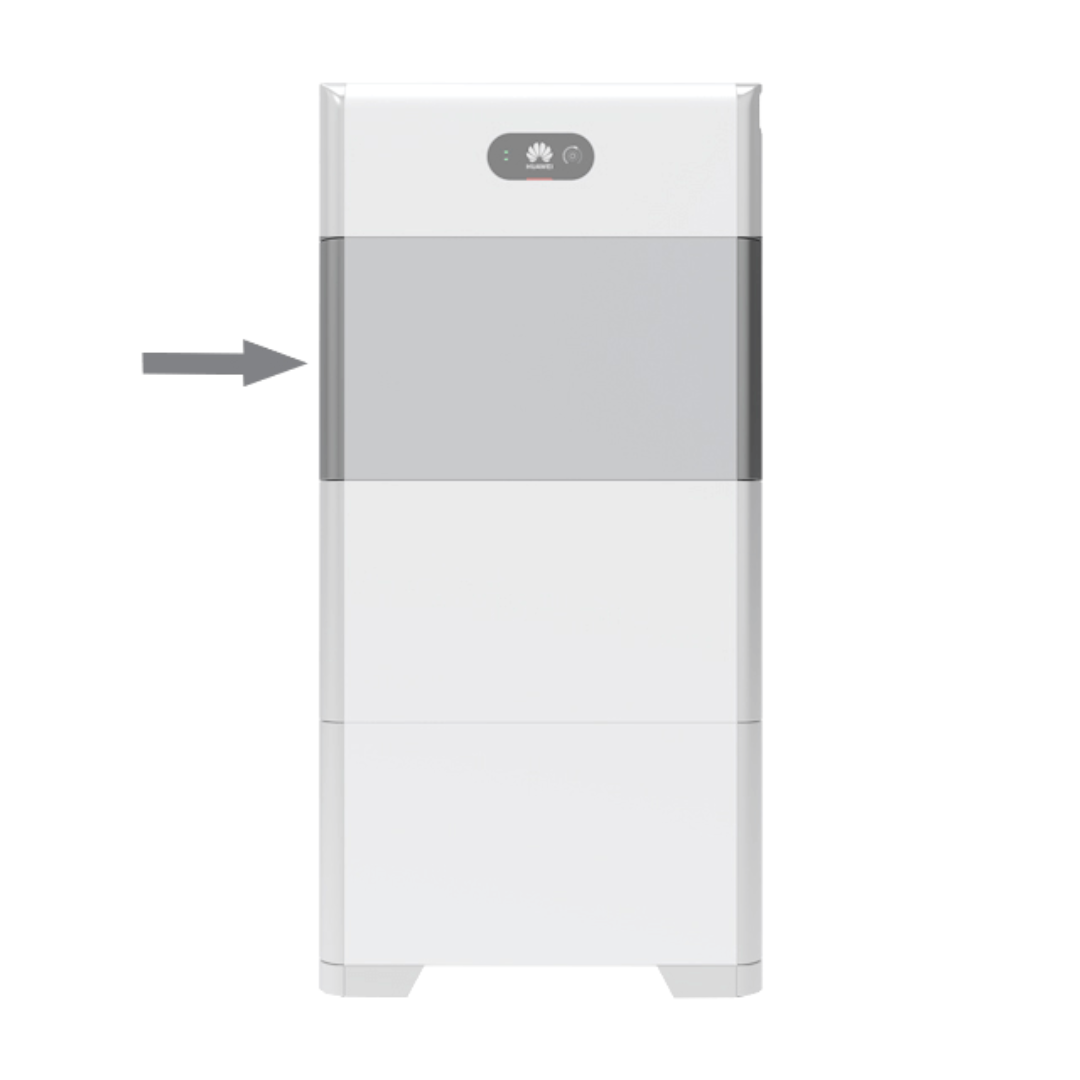

Technical specifications of the battery module:
- Dimensions 59.0 x 25.5 x 36.0 cm
- Weight 68.0kg
- Battery type DC High voltage
- IP Protection IP66
- Compatible inverter: Huawei
- Total rated power (KWH) 7.0
- Useful power (KWH) 6.9
- Max. charging power (KW) 3.5
- Max. Discharge Power (KW) 3.5
- Battery Installation Ground Mounted
- Product warranty 15 years
The Huawei LUNA2000-S1 is presented as a robust and adaptable solution to optimize energy storage in residential solar installations, ensuring efficient and sustainable energy management.
