Description

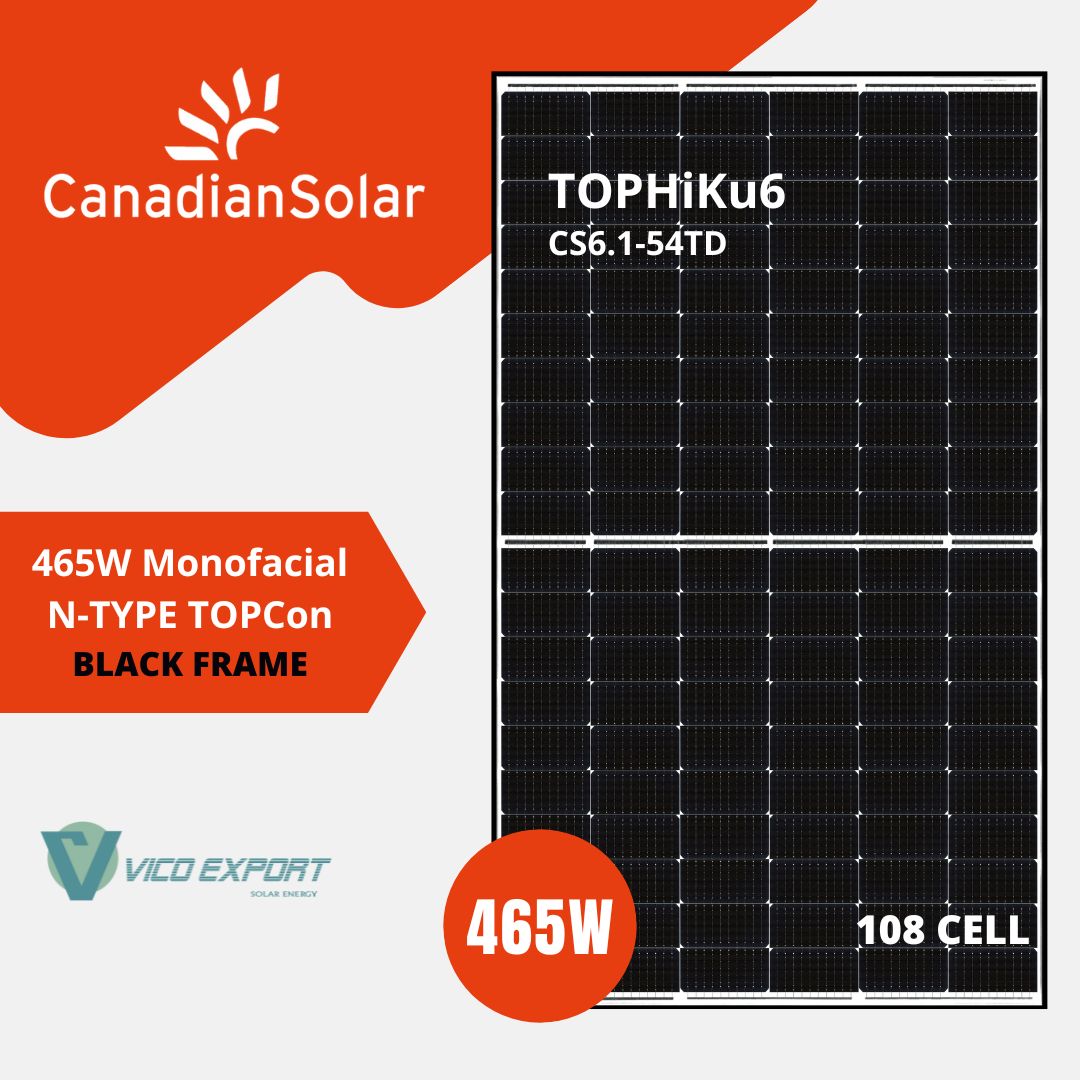

465W Canadian Solar N-Type TOPCon | TOPHiKu6 Series (CS6.1-54TD)
MAIN FEATURES
High efficiency of 22.8% and N-Type TOPCon technology: The Canadian Solar TOPHiKu6 module delivers 465 W of power and outstanding performance thanks to its N-Type TOPCon cells, ensuring lower degradation, higher efficiency, and improved thermal response.
Compact design with 108 cells: Ideal for residential rooftops or commercial installations where space is limited. Its dimensions of 1800 × 1134 × 30 mm and light weight of 22.7 kg make handling and installation easy.
Durability and strength: Featuring 1.6 mm tempered glass on both sides and an anodized aluminum frame, it withstands snow loads up to 5400 Pa and wind loads up to 2400 Pa. IP68 protection, IEC certifications, and a 30-year linear performance warranty.
Lower degradation and longer lifespan: First-year degradation ≤ 1% and ≤ 0.4% annually thereafter. This ensures superior long-term performance and a lower LCOE.
TECHNICAL SPECIFICATIONS
Electrical data (STC):
- Maximum power (Pmax): 465 W
- Voltage at MPP (Vmp): 33.6 V
- Current at MPP (Imp): 13.85 A
- Open-circuit voltage (Voc): 39.5 V
- Short-circuit current (Isc): 14.77 A
- Module efficiency: 22.8 %
- Power tolerance: 0 ~ +10 W
Mechanical data:
- Dimensions: 1800 × 1134 × 30 mm
- Weight: 22.7 kg
- Cell type: N-Type TOPCon
- Number of cells: 108 [2 × (9 × 6)]
- Front and rear glass: 1.6 mm anti-reflective coated glass
- Frame: Anodized aluminum
- Connectors: T6 / MC4 / MC4-EVO2 / MC4-EVO2A
- Protection rating: IP68
Operating conditions:
- Temperature range: -40 °C ~ +85 °C
- Maximum system voltage: 1500 V
- Maximum series fuse: 25 A
- Temperature coefficient (Pmax): -0.29 %/°C
ADDITIONAL BENEFITS
- Product warranty: 25 years
- Linear performance warranty: 30 years
- Certifications: IEC 61215 / IEC 61730 / IEC 61701 / IEC 62716 / ISO 9001 / ISO 14001 / ISO 45001
- High resistance to salt mist, ammonia, dust, and sand
- Manufactured by one of the world leaders in solar energy
