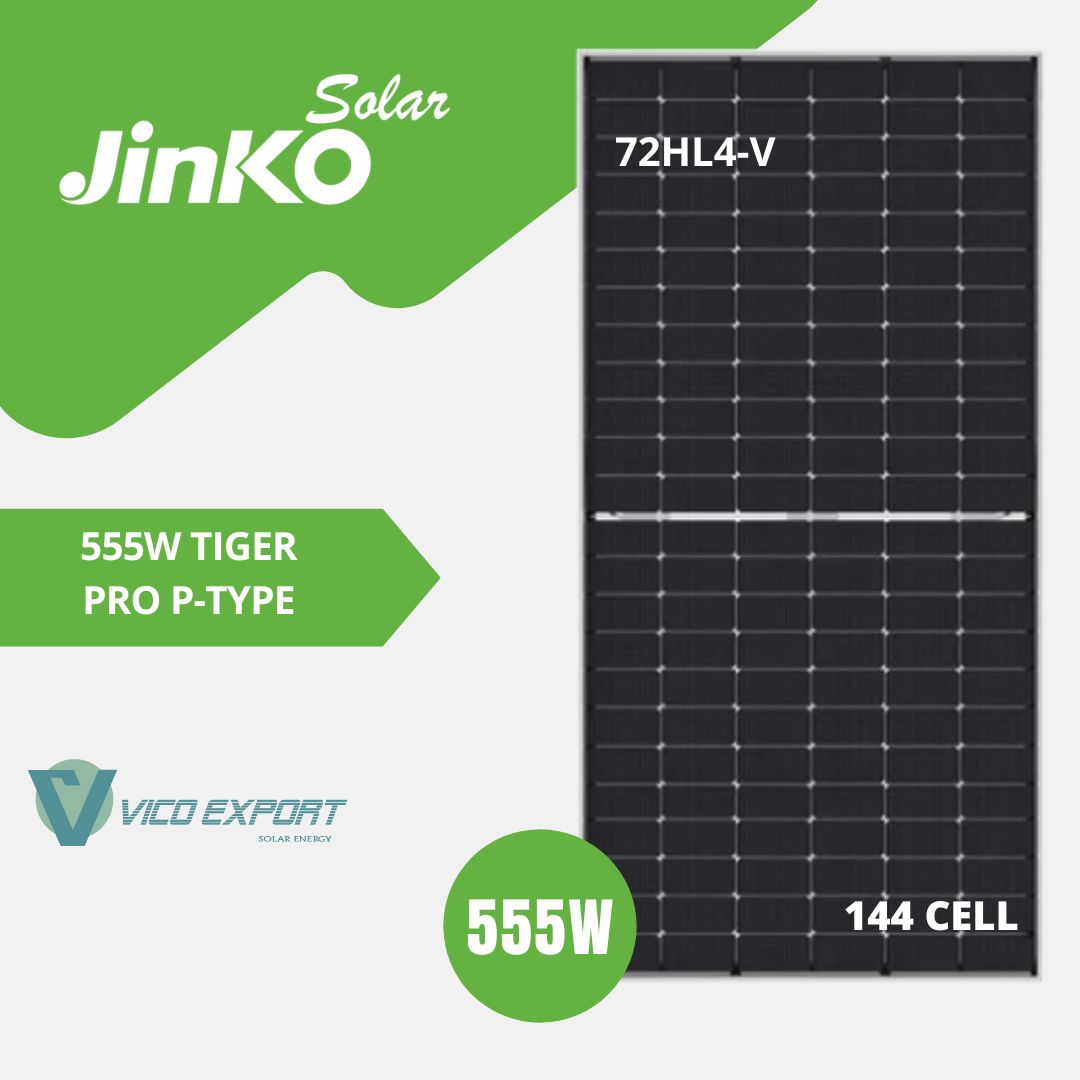

555W Jinko Solar P-type | Tiger Pro 72HL4-V
KEY FEATURES
High power and 21.48% efficiency: The Jinko Tiger Pro JKM555M-72HL4 module delivers a nominal power output of 555 W with an efficiency of 21.48%. Its design with 144 P-type monocrystalline cells and Multi-Busbar (MBB) technology improves current collection and reduces losses, optimizing overall system performance.
Reduced hot-spot losses: Thanks to its optimized electrical design and lower operating current, this module significantly reduces hot-spot formation and improves thermal behavior. Its temperature coefficient is just -0.35%/°C.
Long-term guaranteed durability: Designed to withstand snow loads up to 5400 Pa and wind loads up to 2400 Pa. High resistance to salt mist and ammonia. It includes a 12-year product warranty and a 25-year linear power output warranty with a maximum annual degradation of 0.55%.
Stable production even under adverse conditions: Engineered to maintain performance in extreme environments and low-irradiance conditions. Its NOCT power output is 413 W, ensuring consistent energy production throughout the year.
Electrical Data (STC):
- Nominal power (Pmax): 555 W
- Voltage at MPP (Vmp): 40.99 V
- Current at MPP (Imp): 13.54 A
- Open-circuit voltage (Voc): 49.72 V
- Short-circuit current (Isc): 14.12 A
- Module efficiency: 21.48%
- Power tolerance: 0 ~ +3%
Mechanical Data:
- Cell type: P-Type monocrystalline (MBB)
- Number of cells: 144 (6×24)
- Dimensions: 2278 × 1134 × 35 mm
- Weight: 27 kg
- Glass: 3.2 mm tempered glass with anti-reflective coating
- Frame: Anodized aluminum alloy
- Connectors: IP68, MC4 compatible
- Output cables: (+) 400 mm / (−) 200 mm (customizable)
Operating Conditions:
- Operating temperature range: -40 °C to +85 °C
- Maximum system voltage: 1500 V DC (IEC)
- Maximum series fuse rating: 25 A
- Temperature coefficient (Pmax): -0.35%/°C
- Temperature coefficient (Voc): -0.28%/°C
- Temperature coefficient (Isc): +0.048%/°C
- Nominal operating cell temperature (NOCT): 45 ± 2 °C
ADDITIONAL BENEFITS
- Product warranty: 12 years
- Linear performance warranty: 25 years
- Certifications: IEC61215, IEC61730, ISO 9001, ISO 14001, ISO 45001
- High resistance to salinity, ammonia, and harsh environmental conditions
The Jinko Tiger Pro 555W module is ideal for commercial and industrial installations where maximum power, reliability, and long-term efficiency are required.
