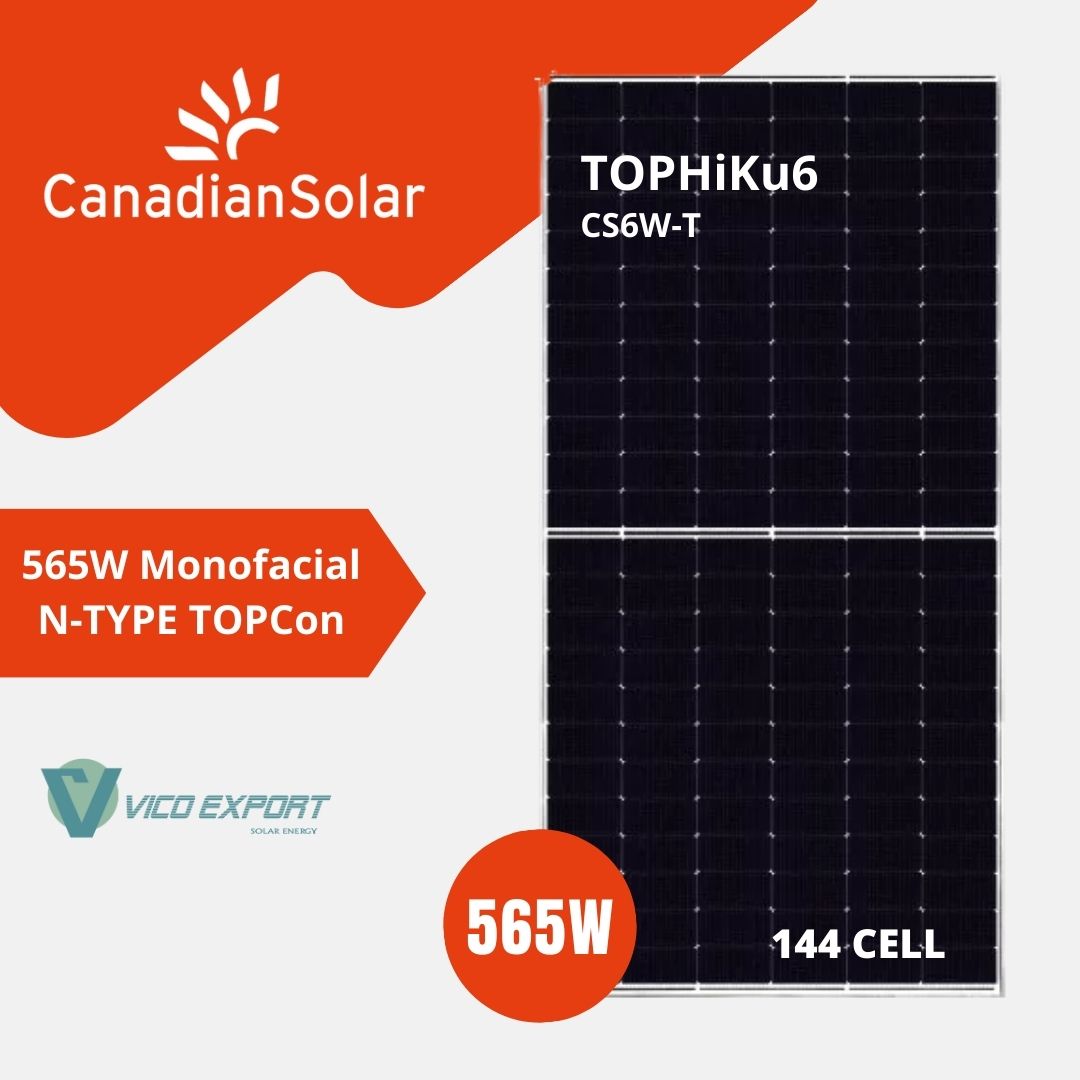

Canadian Solar 565W N-type TOPCon | TOPHiKu6 Series CS6W-565T
The CS6W-565T photovoltaic module from Canadian Solar delivers 565 W of power and outstanding performance thanks to N-type TOPCon technology. It is part of the TOPHiKu6 series, designed to maximize energy production with high efficiency and long-term reliability.
Its advantages include a high efficiency of 21.9%, excellent performance under high temperature conditions, and low annual degradation (0.4%), resulting in a higher return on investment throughout the system’s lifetime.
It is built to withstand snow loads of up to 5400 Pa and wind loads of up to 2400 Pa, making it ideal for demanding industrial and commercial projects.
TECHNICAL SPECIFICATIONS
Electrical Data (STC):
- Maximum Power (Pmax): 565 W
- Operating Voltage (Vmp): 42.5 V
- Operating Current (Imp): 13.30 A
- Open-Circuit Voltage (Voc): 51.6 V
- Short-Circuit Current (Isc): 13.75 A
- Module Efficiency: 21.9%
- Power Tolerance: 0 ~ +10 W
- Maximum System Voltage: 1500 V (IEC/UL)
- Maximum Series Fuse: 25 A
Mechanical Data:
- Cell Type: N-type TOPCon
- Number of Cells: 144 (2 × 72)
- Dimensions: 2278 × 1134 × 30 mm
- Weight: 27.6 kg
- Front Glass: 3.2 mm tempered glass with anti-reflective coating
- Frame: Anodized aluminum alloy
- Junction Box: IP68, with 3 bypass diodes
- Cable: 4 mm² / 12 AWG
- Cable Length: 350 mm (+) / 250 mm (−)
- Connectors: T6 / MC4-EVO2 / MC4-EVO2A
Operating Temperature:
- Temperature Coefficient Pmax: -0.29 %/°C
- Temperature Coefficient Voc: -0.25 %/°C
- Temperature Coefficient Isc: +0.05 %/°C
- Operating Temperature: -40 °C ~ +85 °C
- NMOT: 41 ± 3 °C
Certifications:
- IEC 61215 / IEC 61730 / UL 61730
- IEC 61701 / IEC 62716 / IEC 60068-2-68
- ISO 9001, ISO 14001, ISO 45001, IEC 62941
Warranty:
- Product Warranty: 12 years
- Performance Warranty: 30 years
