Description

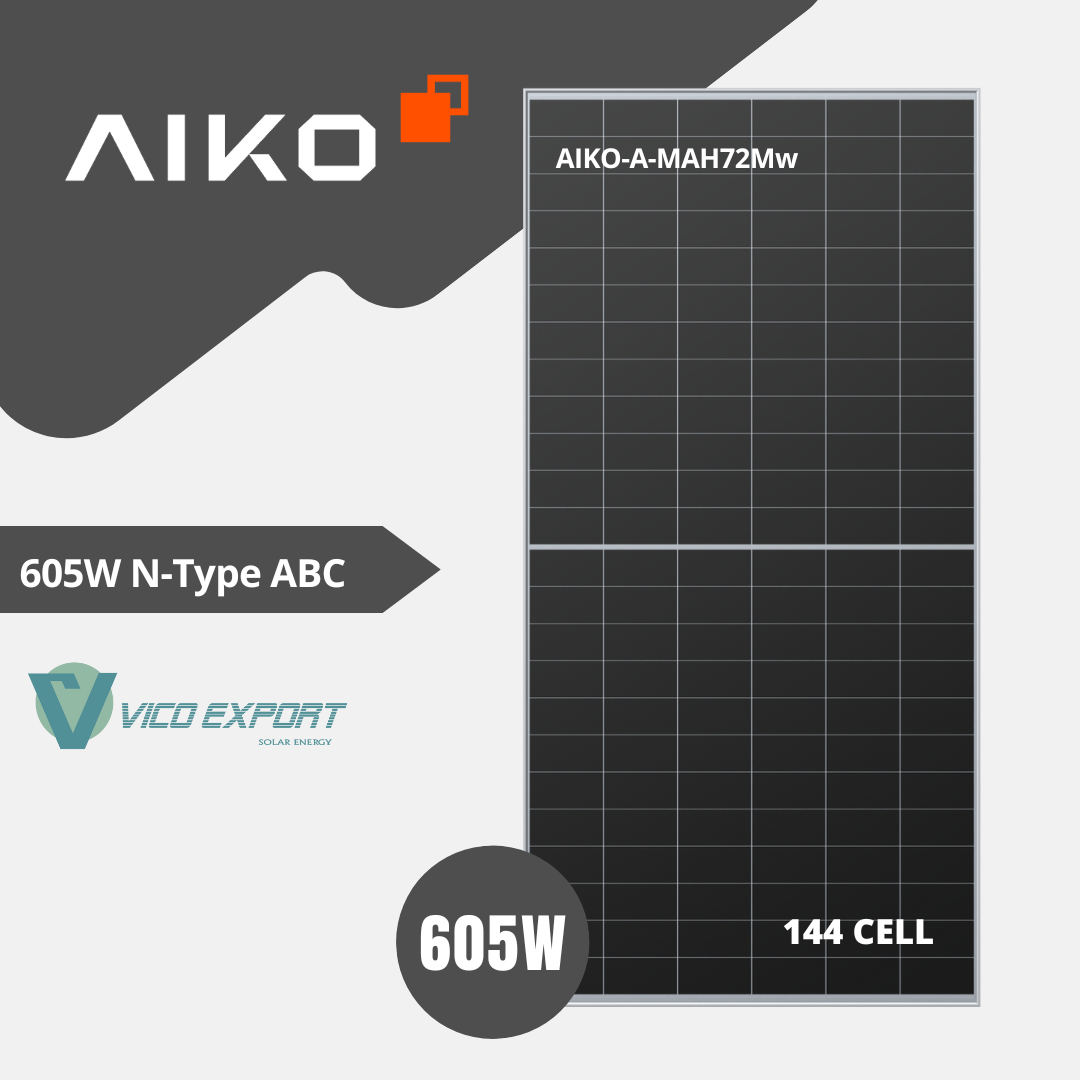

605W Aiko Solar N-type ABC | AIKO-A-MAH72Mw Series
KEY FEATURES
N-Type ABC Technology: Utilizes monocrystalline cells with All Back Contact (ABC) technology, eliminating front-side connections to enhance light capture, efficiency, and module aesthetics.
High Power and Efficiency: Delivers a nominal power of 605W with an efficiency of 23.6%, optimizing energy production even under low irradiance or high temperature conditions.
Robust Construction: Engineered to withstand harsh environments, supporting snow loads up to 5400 Pa and wind loads up to 2400 Pa. Features high-strength tempered glass and an anodized aluminum frame.
Excellent Thermal Performance: With a temperature coefficient of -0.29%/°C, it maintains stable performance even in hot climates.
TECHNICAL SPECIFICATIONS
Electrical Data (STC):
- Power Output: 605W
- Optimal Operating Voltage (Vmp): 44.78V
- Optimal Operating Current (Imp): 13.52A
- Open Circuit Voltage (Voc): 54.09V
- Short Circuit Current (Isc): 14.28A
- Module Efficiency: 23.4%
Mechanical Data:
- Cell Type: N-Type Monocrystalline ABC
- Dimensions: 2278 × 1134 × 30 mm
- Weight: 27 kg
- Front Glass: 3.2 mm tempered glass with anti-reflective coating
- Frame: Anodized aluminum
- Junction Box: IP68, with 3 bypass diodes
- Connectors: MC4 compatible
Operating Temperature:
-
Temperature Coefficient (Pmax): -0.26%/°C
ADDITIONAL BENEFITS
International Certifications: Compliant with IEC 61215 and IEC 61730 standards, ensuring quality, reliability, and safety.
Extended Warranty: 15-year product warranty and 30-year linear performance warranty with a maximum annual degradation of 0.35%.
In summary, the 605W Aiko MAH72Mw module offers a high-performance and durable solution, ideal for photovoltaic installations that demand efficiency, technological innovation, and excellent resistance to challenging environmental conditions.
