Description

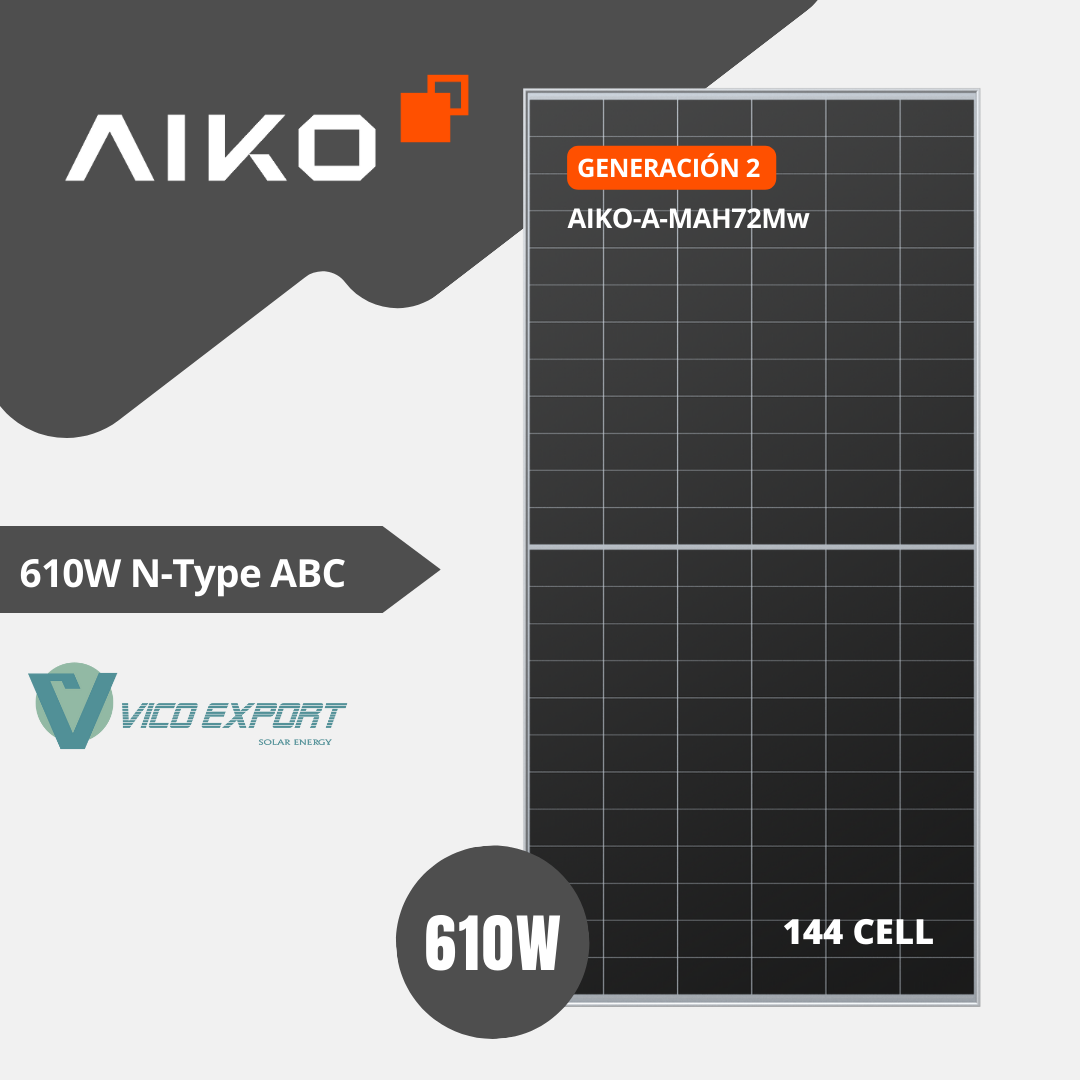

610W AIKO N-Type | Comet 1N Series (MAH72Mw)
Second Generation
KEY FEATURES
High-Efficiency N-Type ABC Cells: This AIKO module from the Comet 1N Series features N-Type cells with ABC (All Back Contact) technology, completely eliminating front-side metal lines and maximizing solar absorption. It achieves 23.6% efficiency and performs exceptionally well under low irradiance conditions.
610 W Output in Standard Format: With a 610 W output, the MAH72Mw model is ideal for demanding projects requiring maximum yield in limited space. Perfect for commercial, industrial, or agrivoltaic rooftops.
Elegant All Black Design: Its fully black appearance with no visible busbars offers a cleaner and more uniform look, highly valued in projects where aesthetics also matter.
ABC Back Contact Technology: By removing front metallization and increasing the active area, shading losses are reduced, and efficiency improves. This cell type also enhances thermal dissipation and module durability.
Guaranteed Durability and Reliability: Built with high-strength tempered glass, anodized aluminum frame, and MC4 connectors. Certified to withstand extreme conditions including wind, snow, and dust. Backed by a 15-year product warranty and 30-year linear performance guarantee.
TECHNICAL SPECIFICATIONS
Electrical Data (STC):
- Nominal Power (Pmax): 610 W
- MPP Voltage (Vmp): 43.60 V
- MPP Current (Imp): 13.99 A
- Open Circuit Voltage (Voc): 51.90 V
- Short Circuit Current (Isc): 14.66 A
- Module Efficiency: 23.6%
Mechanical Data:
- Cell Type: Monocrystalline N-Type ABC
- Layout: 144 cells (6×24)
- Dimensions: 2278 × 1134 × 30 mm
- Weight: 28.5 kg
- Glass: 2.0 mm tempered glass (front)
- Frame: Black anodized aluminum
- Connectors: MC4 compatible
- Cable Length: 1400 mm (+) / 1400 mm (−)
Operating Conditions:
- Operating Temperature: -40 °C to +85 °C
- Maximum System Voltage: 1500 V DC
- Maximum Series Fuse: 25 A
- Temperature Coefficient (Pmax): -0.29% / °C
ADDITIONAL BENEFITS
- Product Warranty: 15 years
- Linear Performance Warranty: 30 years
- Certifications: IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001
- High resistance to salt mist, dust, ammonia, and extreme conditions
The AIKO 610W MAH72Mw module is a premium solution for projects demanding high power, maximum efficiency, and refined aesthetics. Perfect for commercial and industrial installations where energy performance and visual appeal go hand in hand.
