Description

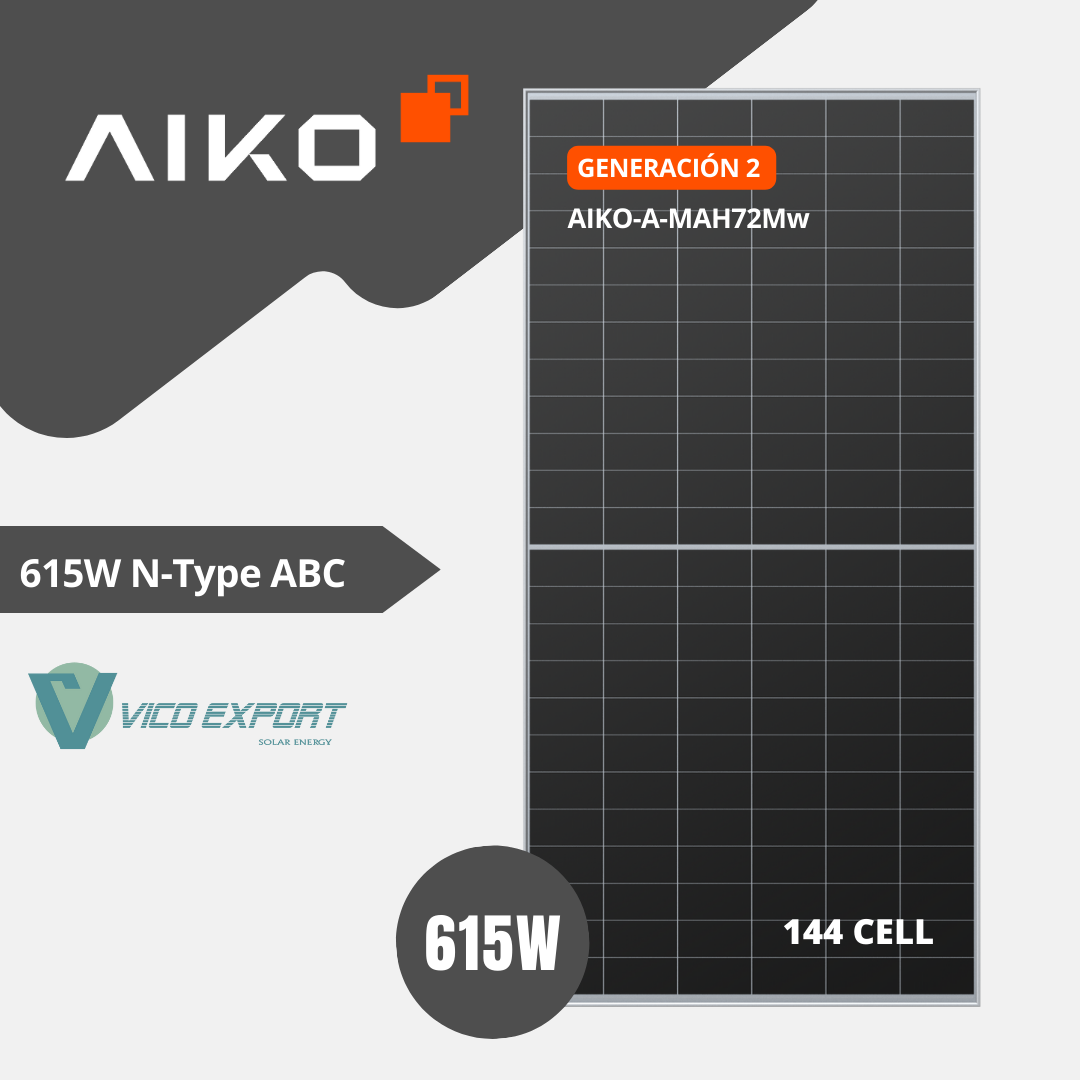

615W AIKO N-Type | Comet 1N Series (MAH72Mw)
Second Generation
KEY FEATURES
High-Efficiency N-Type ABC Cells: This AIKO module from the Comet 1N Series incorporates N-Type cells with ABC (All Back Contact) technology, completely eliminating front-side metal lines and maximizing solar absorption. It delivers an efficiency of 23.8% and excellent performance under low-irradiance conditions.
615 W Output in Standard Format: With a rated output of 615 W, the MAH72Mw model is designed for demanding projects where maximum performance is required in limited space. Ideal for commercial, industrial, or agrivoltaic rooftops.
Elegant All-Black Design: Thanks to its fully black appearance with no visible busbars, the module offers a cleaner and more uniform visual integration, especially valued in projects where aesthetics also matter.
ABC Back Contact Technology: By eliminating front metallization and increasing the active area, shading losses are reduced and efficiency is increased. This cell technology also improves thermal dissipation and overall module durability.
Guaranteed Durability and Reliability: Built with high-strength tempered glass, an anodized aluminum frame, and MC4 connectors. Certified to withstand extreme conditions such as wind, snow, and dust. Backed by a 15-year product warranty and a 30-year linear performance warranty.
TECHNICAL SPECIFICATIONS
Electrical Data (STC):
- Nominal Power (Pmax): 615 W
- MPP Voltage (Vmp): 44.98 V
- MPP Current (Imp): 13.68 A
- Open-Circuit Voltage (Voc): 54.29 V
- Short-Circuit Current (Isc): 14.44 A
- Module Efficiency: 23.8%
Mechanical Data:
- Cell Type: Monocrystalline N-Type ABC
- Layout: 144 cells (6 × 24)
- Dimensions: 2278 × 1134 × 30 mm
- Weight: 27 kg
- Glass: 2.0 mm tempered glass (front)
- Frame: Black anodized aluminum
- Connectors: MC4 compatible
- Cable Length: 1400 mm (+) / 1400 mm (−)
Operating Conditions:
- Operating Temperature: -40 °C to +85 °C
- Maximum System Voltage: 1500 V DC
- Maximum Series Fuse: 25 A
- Temperature Coefficient (Pmax): -0.29% / °C
ADDITIONAL BENEFITS
- Product Warranty: 15 years
- Linear Performance Warranty: 30 years
- Certifications: IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001
- High resistance to salt mist, dust, ammonia, and extreme conditions
The AIKO 615W MAH72Mw module is a premium solution for projects seeking high power, maximum efficiency, and refined aesthetics. Ideal for commercial and industrial installations where energy performance and visual appeal go hand in hand.
