Description

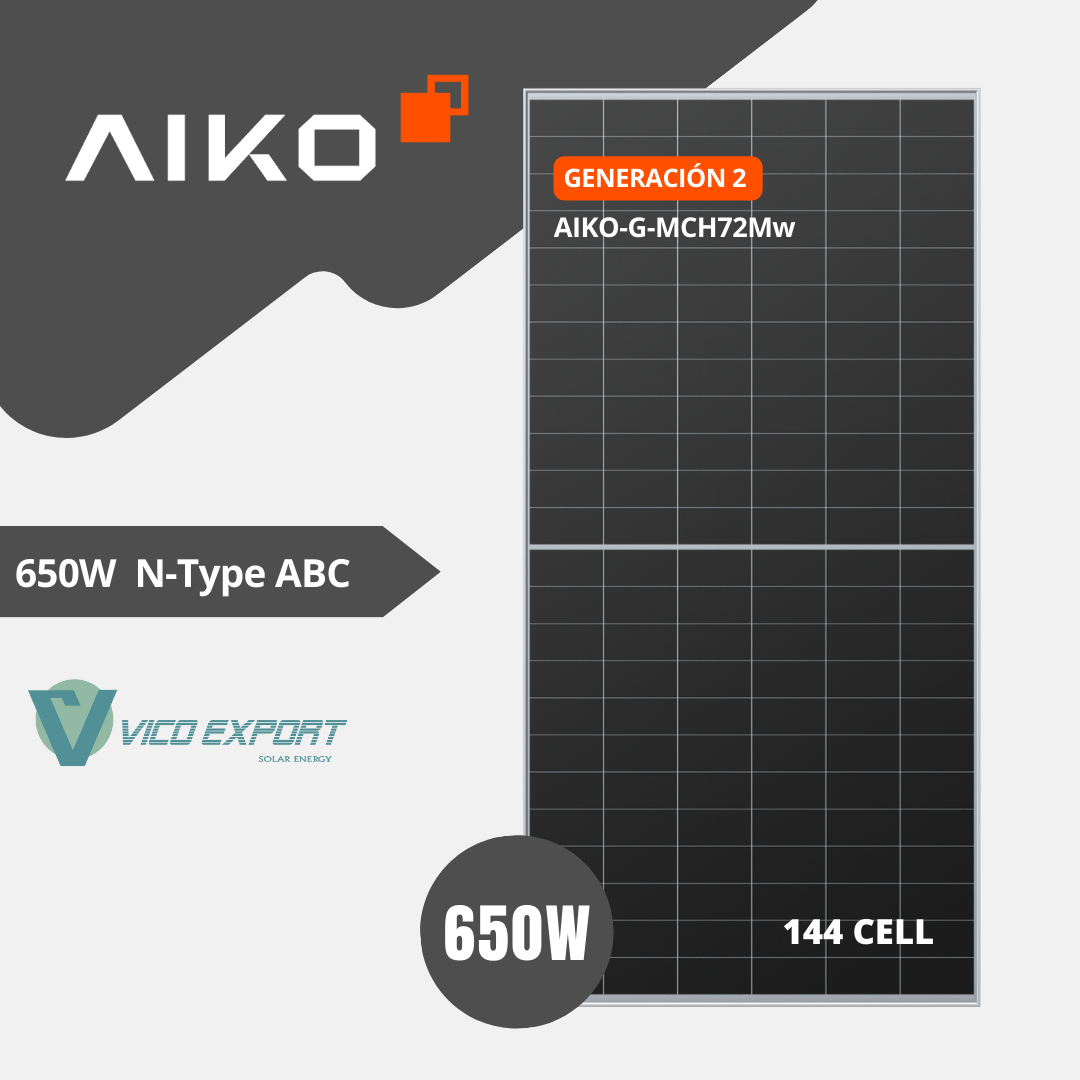

650W AIKO N-Type ABC | Comet 2U Series (AIKO-G-MCH72Mw)
The AIKO Solar Comet 2U 650W is a high-efficiency monocrystalline module based on N-Type ABC technology, designed to maximize power density in utility-scale installations and technically demanding C&I projects.
Thanks to its advanced cell architecture and excellent thermal performance, this module delivers higher energy yield, lower annual degradation, and optimized long-term reliability under harsh environmental conditions.
TECHNICAL SPECIFICATIONS
Electrical Data (STC):
- Maximum Power (Pmáx): 650 W
- Open Circuit Voltage (Voc): 54.40 V
- Voltage at Maximum Power (Vmp): 45.10 V
- Short Circuit Current (Isc): 15.12 A
- Current at Maximum Power (Imp): 14.42 A
- Module Efficiency: 24.1 %
- Maximum System Voltage: 1500 V DC
- Power Tolerance: 0 ~ +3 %
Mechanical Data:
- Dimensions: 2382 × 1134 × 30 mm
- Weight: 27.1 kg ± 3 %
- Number of Cells: 144 (6 × 24)
- Glass: 3.2 mm tempered glass
- Frame: Anodized aluminum, corrosion-resistant
- Junction Box: IP68, 3 bypass diodes
- Connector: Compatible with MC4 / MC4-EVO2A
- Cable: 4 mm² (IEC)
Operating Conditions:
- Operating Temperature: -40 °C to +70 °C
- Maximum Series Fuse Rating: 25 A
- Protection Class: Class II
- Maximum Static Load: 5400 Pa front / 2400 Pa rear
- Hail Resistance: 40 mm diameter at 23 m/s
- Fire Resistance Rating: Class C IEC
WARRANTIES
- 15-year product warranty (extendable to 25 years)
- 30-year linear performance warranty
