Description

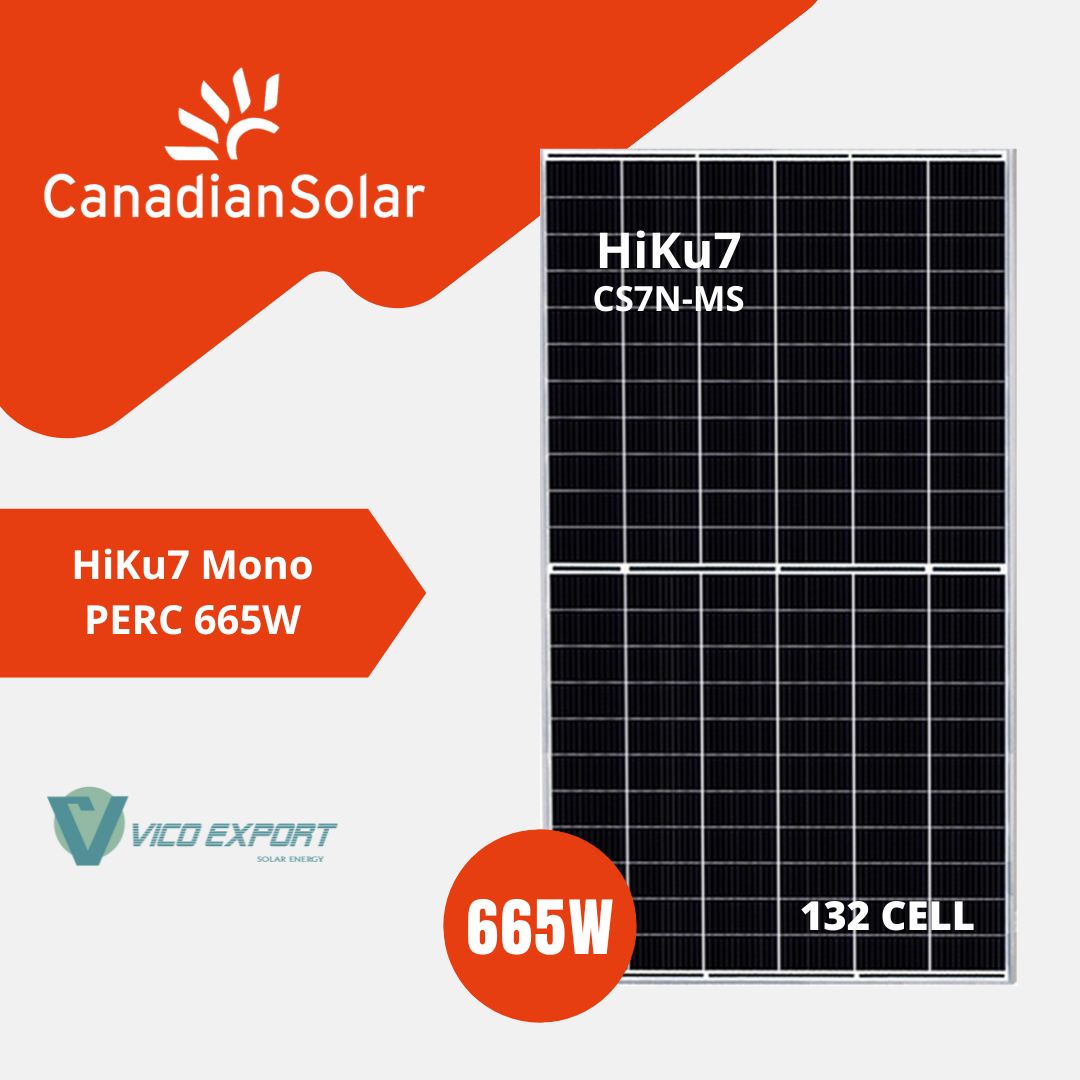

665w Canadian Solar P-Type | HiKu7 Series (CS7N-665-MS)
MAIN FEATURES
High-Efficiency Mono PERC Technology: The HiKu7 CS7N-665MS module from Canadian Solar incorporates cutting-edge Mono PERC technology, delivering excellent energy performance and superior efficiency—ideal for large-scale photovoltaic projects.
High Power and Efficiency: With a nominal power of 665 W and an efficiency of 21.4%, this module optimizes energy production, contributing to higher profitability and a lower Levelized Cost of Energy (LCOE).
Strength and Durability: Engineered to withstand extreme weather conditions, it endures snow loads of up to 5400 Pa and wind loads of up to 2400 Pa, ensuring reliable and safe long-term performance.
Excellent High-Temperature Performance: Thanks to its low temperature coefficient of -0.34%/°C, it maintains efficient performance even in hot climates, reducing thermal losses and maximizing energy generation.
Low Power Degradation: This panel offers outstanding performance stability with only 2% power degradation in the first year and a maximum annual degradation of 0.55%, ensuring consistent production for decades.
TECHNICAL SPECIFICATIONS
Electrical Data (STC):
- Power: 665 W
- Optimum Operating Voltage (Vmp): 38.5 V
- Optimum Operating Current (Imp): 17.28 A
- Open Circuit Voltage (Voc): 45.6 V
- Short Circuit Current (Isc): 18.51 A
- Efficiency: 21.4%
Mechanical Data:
- Cells: Mono PERC Technology
- Cell Arrangement: 132 [2 x (11 x 6)]
- Dimensions: 2384 x 1303 x 35 mm
- Weight: 34.4 kg
- Front Glass: 3.2 mm tempered glass with anti-reflective coating
- Frame: Reinforced anodized aluminum alloy
- Junction Box: IP68, 3 bypass diodes
- Cables: 4.0 mm² (IEC), 12 AWG (UL)
- Cable Length: 460 mm (+) / 340 mm (-) or customized
- Connectors: T4 Series or MC4-EVO2
Operating Temperature:
- Operating Temperature Range: -40°C to +85°C
- Nominal Module Operating Temperature (NMOT): 41 ± 3°C
ADDITIONAL BENEFITS
International Certifications: Complies with international quality and safety standards, including IEC 61215, IEC 61730, UL 61730, CE, INMETRO, MCS, UKCA, IEC 61701, IEC 62716, IEC 60068-2-68, and UNI 9177 Class 1.
Reduced Levelized Cost of Energy (LCOE): Thanks to its high efficiency, excellent high-temperature performance, and robust design, it significantly reduces the LCOE, maximizing return on investment.
Extended Warranty: Backed by a 12-year product warranty and a linear performance warranty of up to 25 years, ensuring a profitable and long-lasting investment.
The HiKu7 CS7N-665MS solar module from Canadian Solar is the ideal choice for large-scale solar installations, commercial, and industrial projects seeking to optimize energy production and guarantee maximum long-term efficiency.
