Description

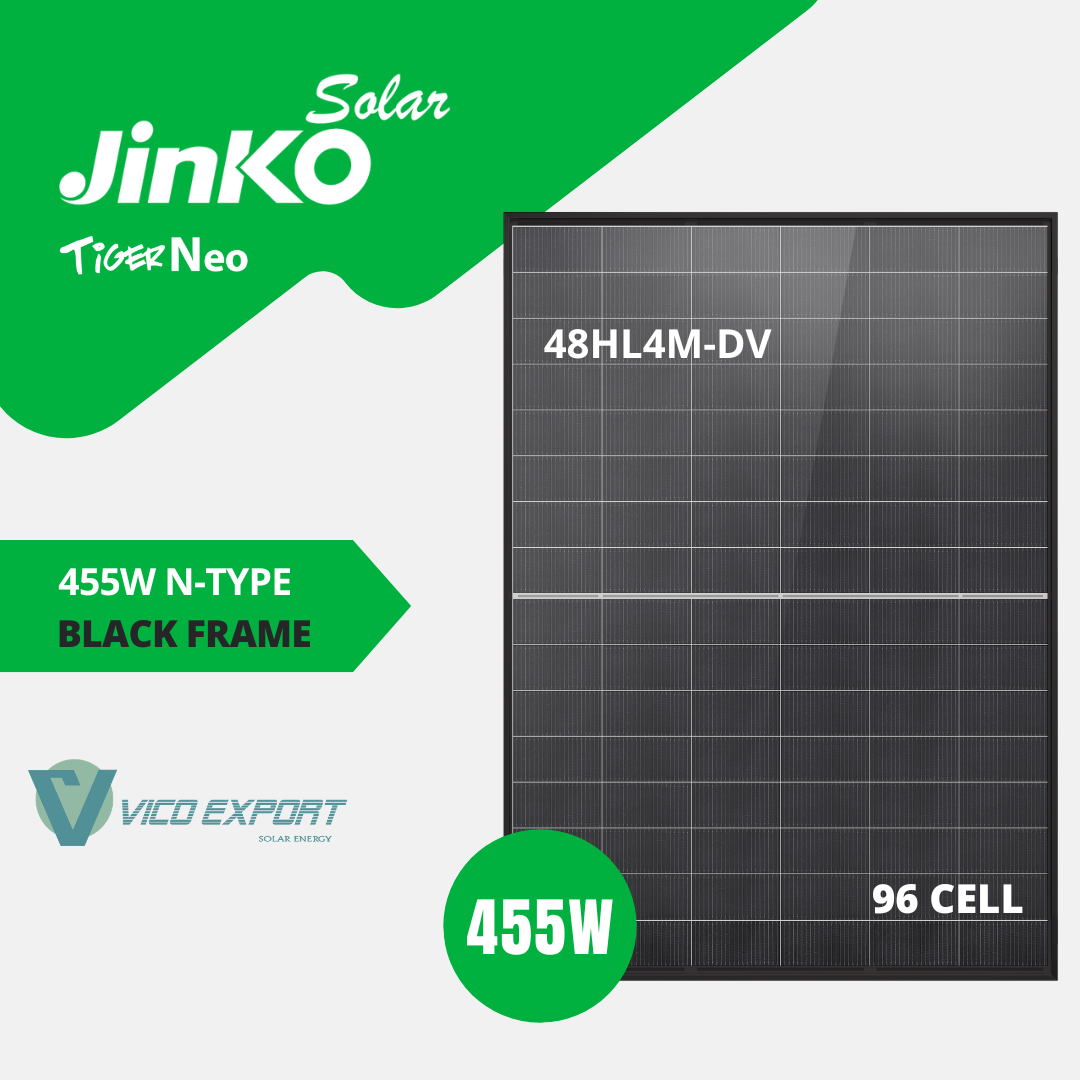

455W Jinko Solar N-type | Tiger Neo 48HL4M-DV
KEY FEATURES
N-Type TOPCon Technology: This panel uses advanced N-Type cells with TOPCon and HOT 3.0 technology, significantly reducing LID/LeTID degradation, improving performance in low-light conditions, and ensuring a longer lifespan.
Monofacial Dual Glass Design: The module is built with 2 mm tempered glass on both sides, offering greater durability, resistance to extreme environmental conditions, and improved PID protection.
High Energy Efficiency: With a power output of 455W and a 22.77% efficiency, this module performs exceptionally well in residential, commercial, or industrial projects seeking maximum energy yield.
Strong Mechanical Resistance: Certified to withstand up to 6000 Pa front load and 4000 Pa rear load, ideal for demanding climates with snow, wind, or dust.
Controlled Degradation: Guarantees only 1% degradation in the first year and a maximum annual loss of 0.4% over the next 29 years.
TECHNICAL SPECIFICATIONS
Electrical Data (STC):
- Nominal Power (Pmax): 455W
- Optimum Operating Voltage (Vmp): 30.28V
- Optimum Operating Current (Imp): 15.03A
- Open Circuit Voltage (Voc): 36.05V
- Short Circuit Current (Isc): 15.88A
- Module Efficiency: 22.77%
Mechanical Data:
- Cell Type: N-Type Monocrystalline (TOPCon)
- Configuration: 96 cells (48 × 2)
- Dimensions: 1762 × 1134 × 30 mm
- Weight: 24.0 kg
- Front and Rear Glass: 2.0 mm tempered glass
- Frame: Anodized aluminum alloy
- Junction Box: IP68
- Connectors: JK03M / MC4 / MC4-EVO2
- Cables: +400 mm / -200 mm (or custom length)
Operating Conditions:
- Operating Temperature: -40 °C to +70 °C
- Maximum System Voltage: 1500 VDC
- Maximum Series Fuse: 30 A
- Temperature Coefficient (Pmax): -0.29% / °C
- Temperature Coefficient (Voc): -0.25% / °C
- Temperature Coefficient (Isc): +0.045% / °C
ADDITIONAL BENEFITS
- Certifications: IEC 61215, IEC 61730, IEC 61701, IEC 62716, ISO 9001, ISO 14001, ISO 45001
- High resistance to salt mist and ammonia
- Product warranty: 15 years
- Linear performance warranty: 30 years
- Low LCOE and higher return on investment
The JKM455N-48HL4M-DV module from Jinko Solar is a reliable, efficient, and durable choice for photovoltaic systems requiring high quality and long-term performance.
