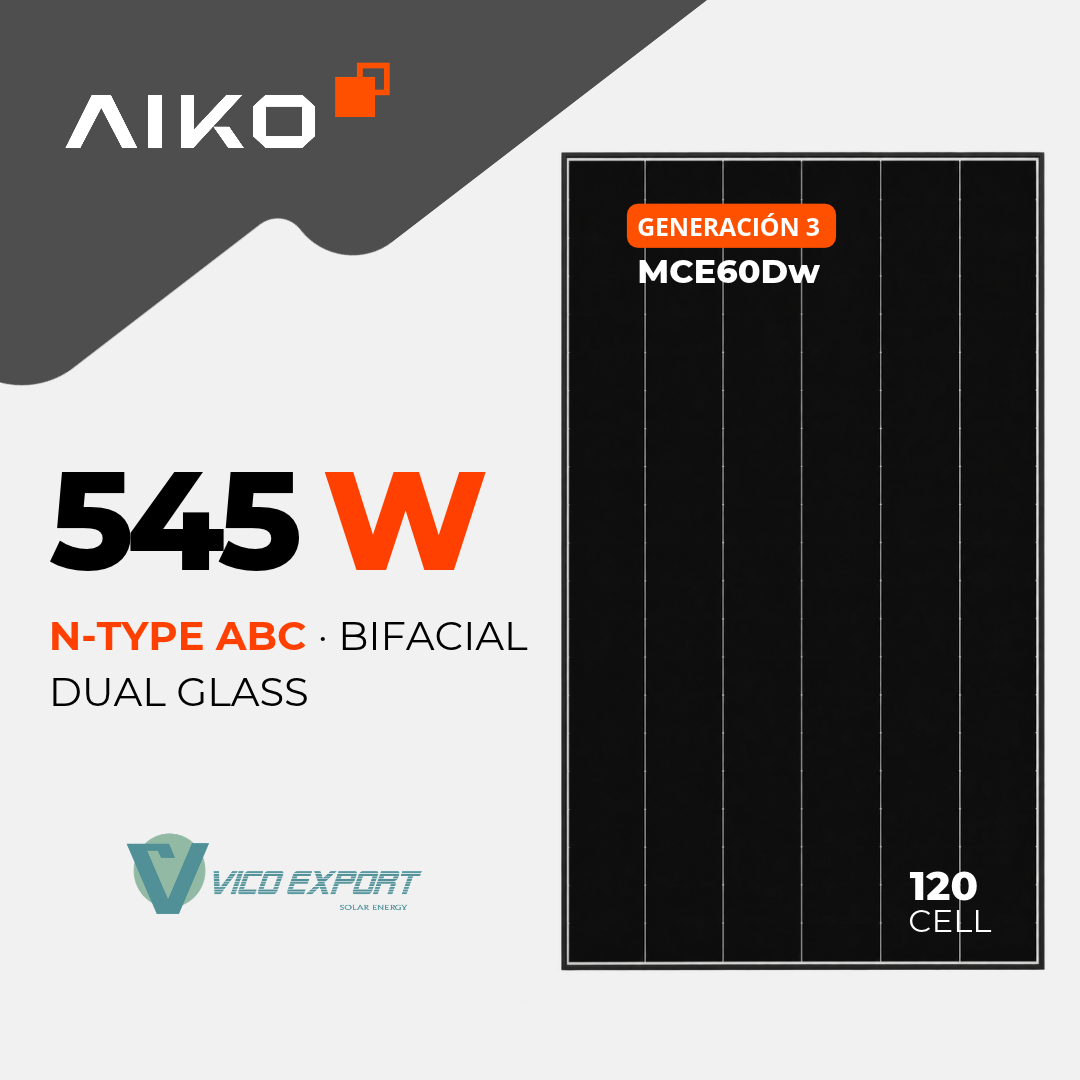

AIKO Neostar 3P+60 N-Type ABC 545W Solar Panel | AIKO-A545-MCE60Dw
The AIKO Neostar 3P+60 545 W solar panel, model AIKO-A545-MCE60Dw, features third-generation N-Type ABC cells and achieves an efficiency of 24.6%. Its high power density delivers 545 W in a module measuring less than two metres long, with dimensions of 1,954 × 1,134 × 30 mm.
ABC back-contact technology eliminates metal contacts from the front surface to increase the active light-absorbing area. The module incorporates partial shading optimisation, high-temperature limitation and resistance to microcracks. Its dual-glass construction and black frame combine durability and aesthetics for professional photovoltaic installations.
Key Features
545 W and 24.6% efficiency
High power density in a module measuring less than two metres long to make effective use of the available surface area.
N-Type ABC technology
Back-contact architecture that eliminates metal contacts from the front surface and increases the active light-absorbing area.
Third-generation ABC
Part of AIKO’s Generation 3 range, featuring Infinite technology and improvements designed to increase power output and energy yield.
Shading optimisation
Designed to reduce the impact of partial shading on the module’s energy generation.
-0.26%/°C temperature coefficient
A favourable power temperature coefficient to limit losses as cell temperature increases.
Dual glass and black frame
2.0 + 2.0 mm heat-strengthened glass and a black anodised aluminium frame, with resistance to microcracks and a refined appearance.
AIKO-A545-MCE60Dw Technical Specifications
| Electrical Parameter | Value at STC |
|---|---|
| Maximum power (Pmax) | 545 Wp |
| Module efficiency | 24.6% |
| Maximum power voltage (Vmp) | 38.50 V |
| Maximum power current (Imp) | 14.16 A |
| Open-circuit voltage (Voc) | 45.70 V |
| Short-circuit current (Isc) | 14.88 A |
| Power tolerance | 0 to +3% |
| Maximum system voltage | 1,500 V DC |
| Maximum series fuse rating | 30 A |
STC: AM 1.5 spectrum, irradiance of 1,000 W/m² and cell temperature of 25 °C.
Electrical Data at NOCT
- Maximum power (Pmax): 413 Wp.
- Maximum power voltage (Vmp): 36.53 V.
- Maximum power current (Imp): 11.32 A.
- Open-circuit voltage (Voc): 43.36 V.
- Short-circuit current (Isc): 12.02 A.
NOCT: AM 1.5 spectrum, irradiance of 800 W/m², ambient temperature of 20 °C and wind speed of 1 m/s.
Mechanical Data and Connections
- Cell type: N-Type ABC.
- Number of cells: 120 (6 × 20).
- Dimensions: 1,954 × 1,134 × 30 mm.
- Weight: 27.1 kg ±3%.
- Glass: dual glass with a heat-strengthened, coated construction, 2.0 + 2.0 mm.
- Frame: black anodised aluminium.
- Junction box: IP68 with 3 bypass diodes.
- Cable cross-section: 4 mm² IEC / 12 AWG UL.
- Cable length: 1,200 mm for both positive and negative cables.
- Connector: MC4-EVO2A.
- Protection class: II.
- Fire rating: IEC Class A.
Temperature Coefficients and Resistance
- Temperature coefficient of Pmax: -0.26%/°C.
- Temperature coefficient of Voc: -0.22%/°C.
- Temperature coefficient of Isc: +0.05%/°C.
- Operating temperature: -40 °C to +70 °C.
- Maximum front static load: 5,400 Pa.
- Maximum rear static load: 2,400 Pa.
- Hail test: 35 mm diameter hailstones at 23 m/s.
Warranties and Degradation
- Product warranty: 15 years.
- Product warranty extendable to 25 years, subject to AIKO’s terms and conditions.
- Linear performance warranty: 30 years.
- Maximum first-year degradation: 1%.
- Minimum guaranteed power output at the end of the first year: 99%.
- Maximum annual degradation from years 2 to 30: 0.35%.
- Minimum guaranteed power output at the end of year 30: 88.85%.
The product warranty extension and all other coverage are subject to AIKO’s terms and conditions.
Certifications and Management Systems
- IEC 61215.
- IEC 61730.
- Directive 2014/35/EU.
- Manufacturer management systems: ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018.
Packaging and Sales Format
- Sales format for this product: full pallet of 37 modules.
- Total rated power per pallet: 20.165 kWp.
- Nominal net weight of the 37 modules: 1,002.7 kg, excluding pallet and packaging.
- 40-foot High Cube container configuration: 888 modules.
The datasheet does not specify the gross pallet weight or external pallet dimensions.
AIKO 545 W Panel for Professional Installations
The AIKO Neostar 3P+60 545 W combines third-generation ABC technology, high efficiency and a format measuring less than two metres long. Its high power output per unit area can help reduce the number of modules and associated materials required to achieve a given installed capacity, depending on the project design.
