Description

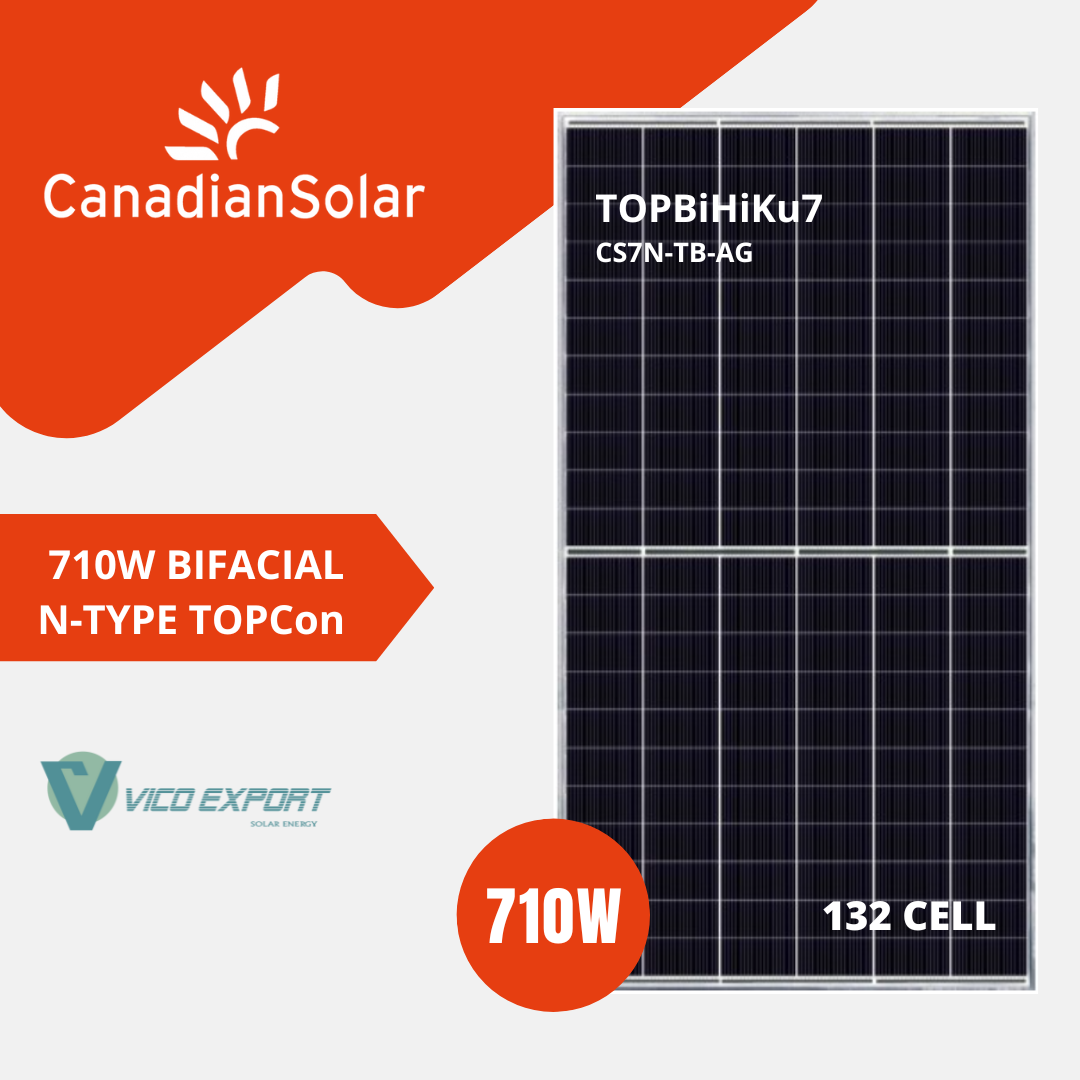

Canadian Solar 710W N-Type TOPCon Bifacial | TOPBiHiKu7 Series (CS7N-TB-AG)
MAIN FEATURES
N-Type TOPCon Bifacial Technology: This module uses N-Type TOPCon cells with bifacial gain of up to 80% and superior performance even under high-temperature conditions. Ideal for installations seeking to maximize energy production.
High Power Output up to 720 W: The module reaches a nominal power of 720 W with 23.2% front-side efficiency, helping to reduce LCOE and overall system costs.
Robust and Durable Design: Built with 2.0 mm tempered dual-glass, anodized aluminum frame, and IP68-rated junction box. Withstands up to 5400 Pa (snow) and 2400 Pa (wind) loads.
Excellent Real-World Performance: Low temperature coefficient of just -0.29%/°C, initial degradation ≤1%, and only 0.4% annual loss over the next 29 years.
Engineered for Utility-Scale Projects: Large dimensions (2384 × 1303 × 33 mm) and high efficiency make it ideal for solar farms, industrial rooftops, and agrovoltaic installations.
TECHNICAL SPECIFICATIONS
Electrical Data (STC):
- Nominal Power (Pmax): 710 W
- MPP Voltage (Vmp): 40.4 V
- MPP Current (Imp): 17.59 A
- Open Circuit Voltage (Voc): 48.3 V
- Short Circuit Current (Isc): 18.59 A
- Module Efficiency: 22.9%
- Bifacial Gain: up to 20% additional
Mechanical Data:
- Cell Type: TOPCon N-Type Bifacial
- Cell Configuration: 132 (2 × 66)
- Dimensions: 2384 × 1303 × 33 mm
- Weight: 37.8 kg
- Glass: 2.0 mm tempered (front and rear)
- Frame: Anodized aluminum
- Connectors: T6 / MC4-EVO2 / MC4-EVO2A
- Cables: +360 mm / -200 mm
Operating Conditions:
- Temperature Range: -40 °C to +85 °C
- Maximum System Voltage: 1500 V (IEC/UL)
- Maximum Series Fuse: 35 A
- Temperature Coefficient (Pmax): -0.29% / °C
ADDITIONAL BENEFITS
- Product Warranty: 12 years
- Linear Power Warranty: 30 years
- Certifications: IEC 61215 / IEC 61730 / UL 61730 / CE / INMETRO / MCS / FSEC / UKCA / ISO 9001 / ISO 14001 / ISO 45001
- Superior resistance to salt mist, dust, ammonia, and sand
The CS7N-720TB-AG module from Canadian Solar is the perfect choice for large-scale photovoltaic projects demanding maximum power, efficiency, and long-term durability.
