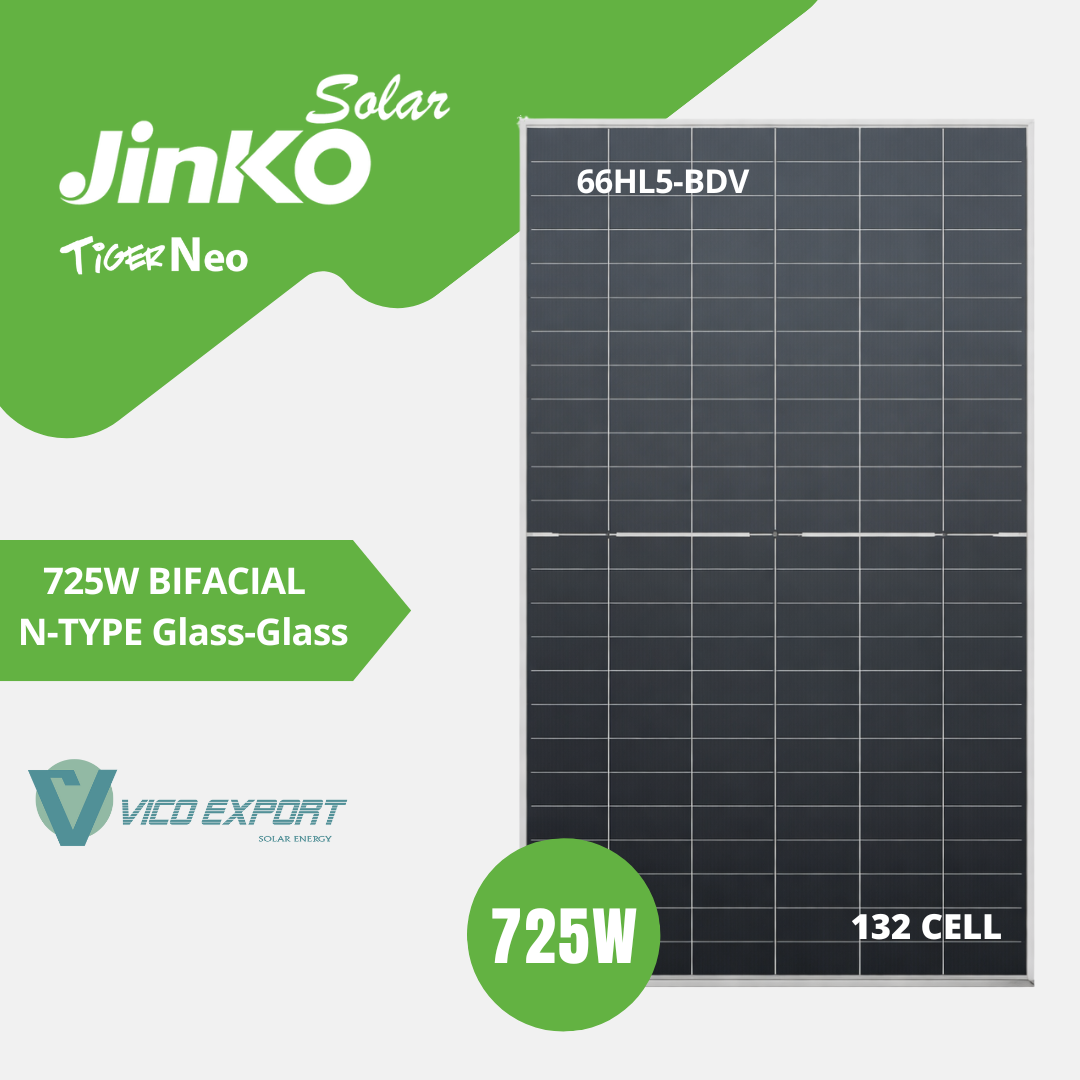

725W Jinko Solar N-type Bifacial | Tiger Neo 66HL5-BDV Series
KEY FEATURES
The Jinko Solar Tiger Neo 66HL5‑BDV 725W module features cutting-edge N‑Type TOPCon cell technology, offering superior performance with low light-induced degradation and excellent thermal behavior. With a module efficiency of 23.34%, this panel is designed to maximize energy production in commercial, industrial, and utility-scale projects.
Thanks to its bifacial dual-glass (Glass‑Glass) design and textured surface, the module can harness reflected light from the ground or nearby structures, delivering greater total energy output. Its reinforced frame and durable encapsulants ensure reliable operation even under extreme environmental conditions.
TECHNICAL SPECIFICATIONS
Electrical Data (STC):
- Rated Power (Pmax): 725 W
- Voltage at MPP (Vmp): 41.00 V
- Current at MPP (Imp): 17.69 A
- Open Circuit Voltage (Voc): 49.20 V
- Short Circuit Current (Isc): 18.74 A
- Module Efficiency: 23.34%
- Power Tolerance: 0~+3%
Mechanical Data:
- Cell Type: N-Type Monocrystalline TOPCon
- Configuration: 132 cells (6 x 22)
- Dimensions: 2384 × 1304 × 33 mm
- Weight: 37.5 kg
- Glass: Double tempered glass (2.0 mm + 2.0 mm)
- Frame: Black anodized aluminum
- Junction Box: IP68
- Connectors: MC4 compatible
ADDITIONAL BENEFITS
- Ideal for commercial, industrial, and utility-scale installations
- High resistance to salt mist, ammonia, dust, and sand
- Excellent thermal behavior with reduced power loss
- 12-year product warranty
- 30-year linear performance warranty
- First-year degradation ≤1% and ≤0.4% annually thereafter
The Jinko Solar Tiger Neo JKM725N-66HL5-BDV 725W solar panel is an advanced solution for solar projects requiring high power, reliability, and efficiency, with a long service life and excellent energy return per square meter.
