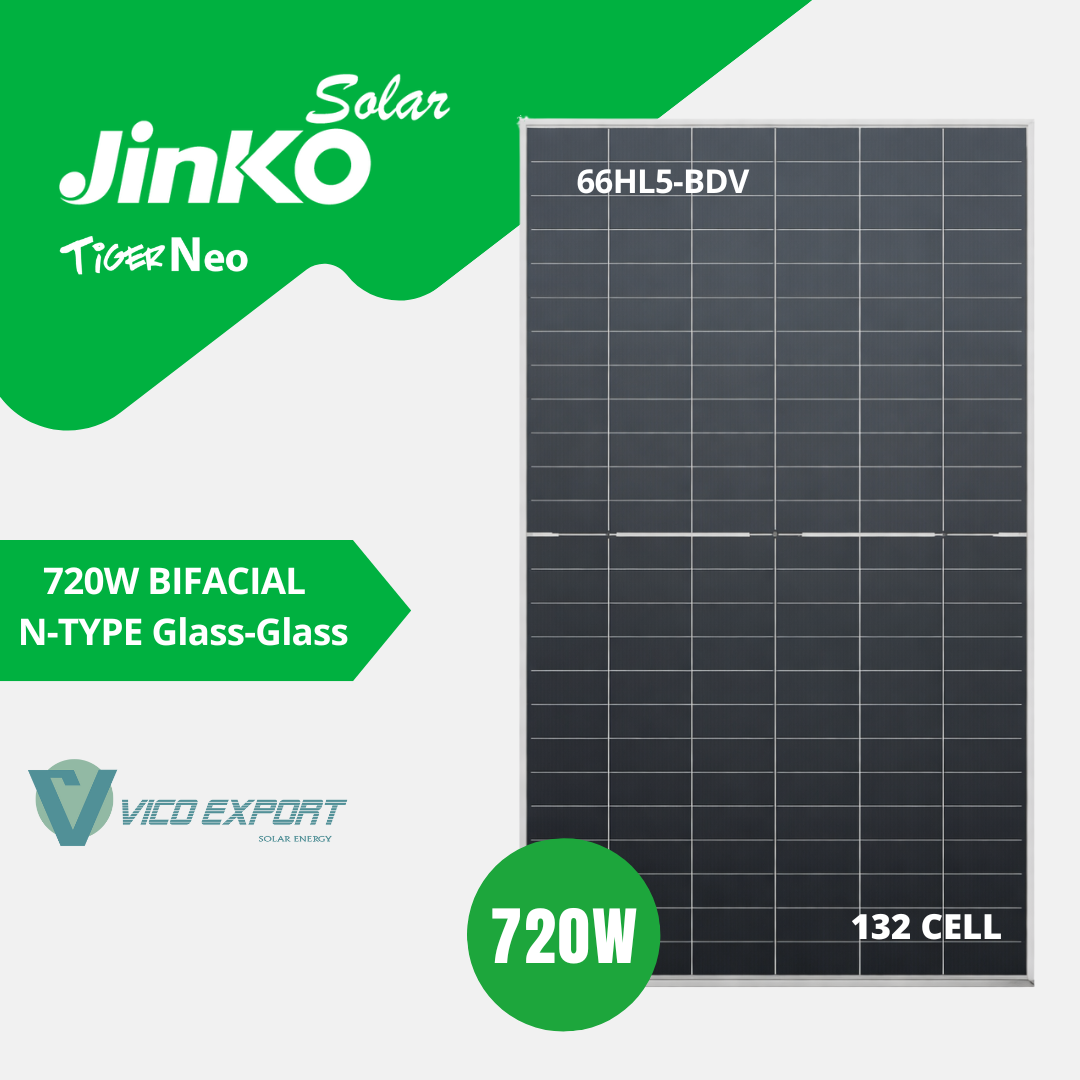

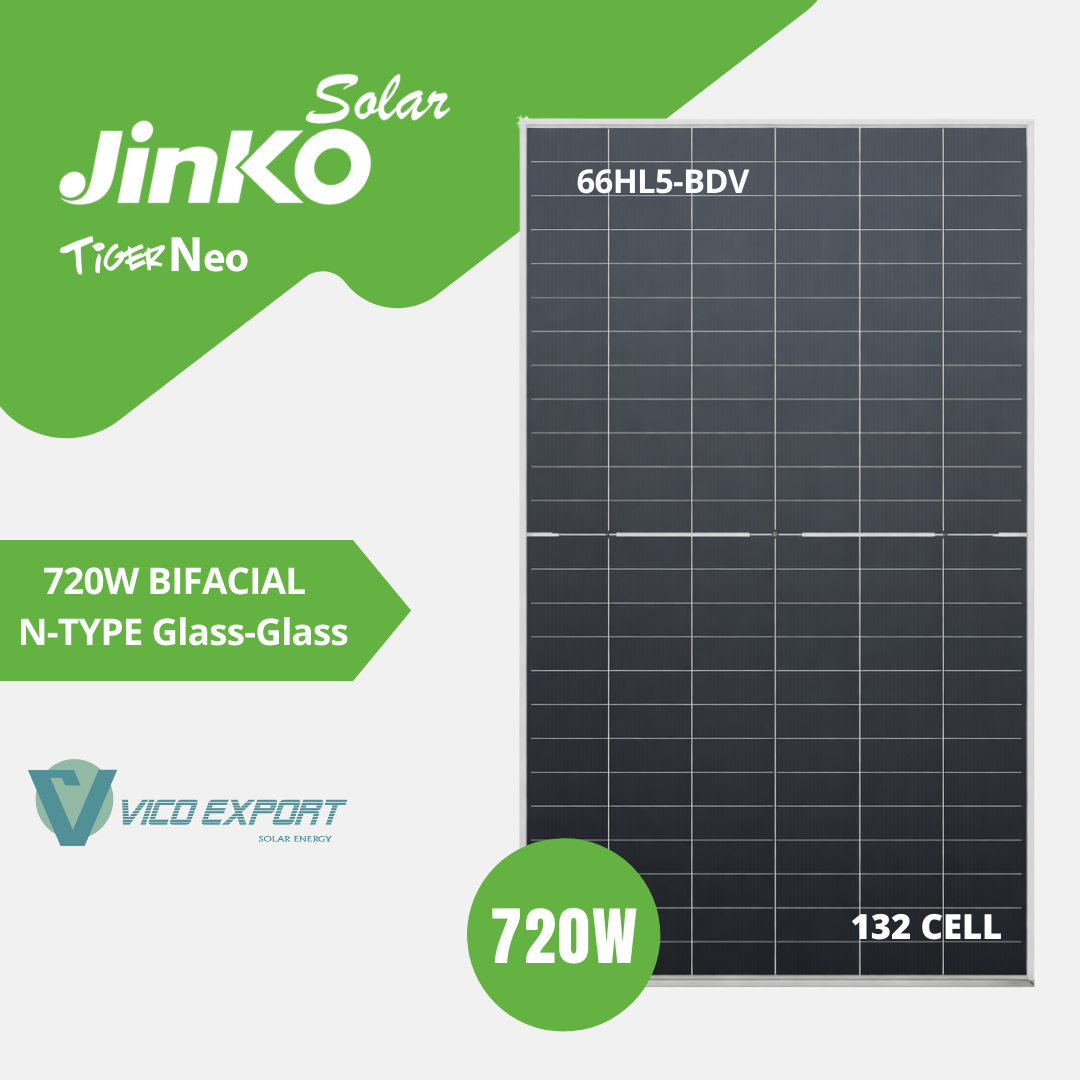

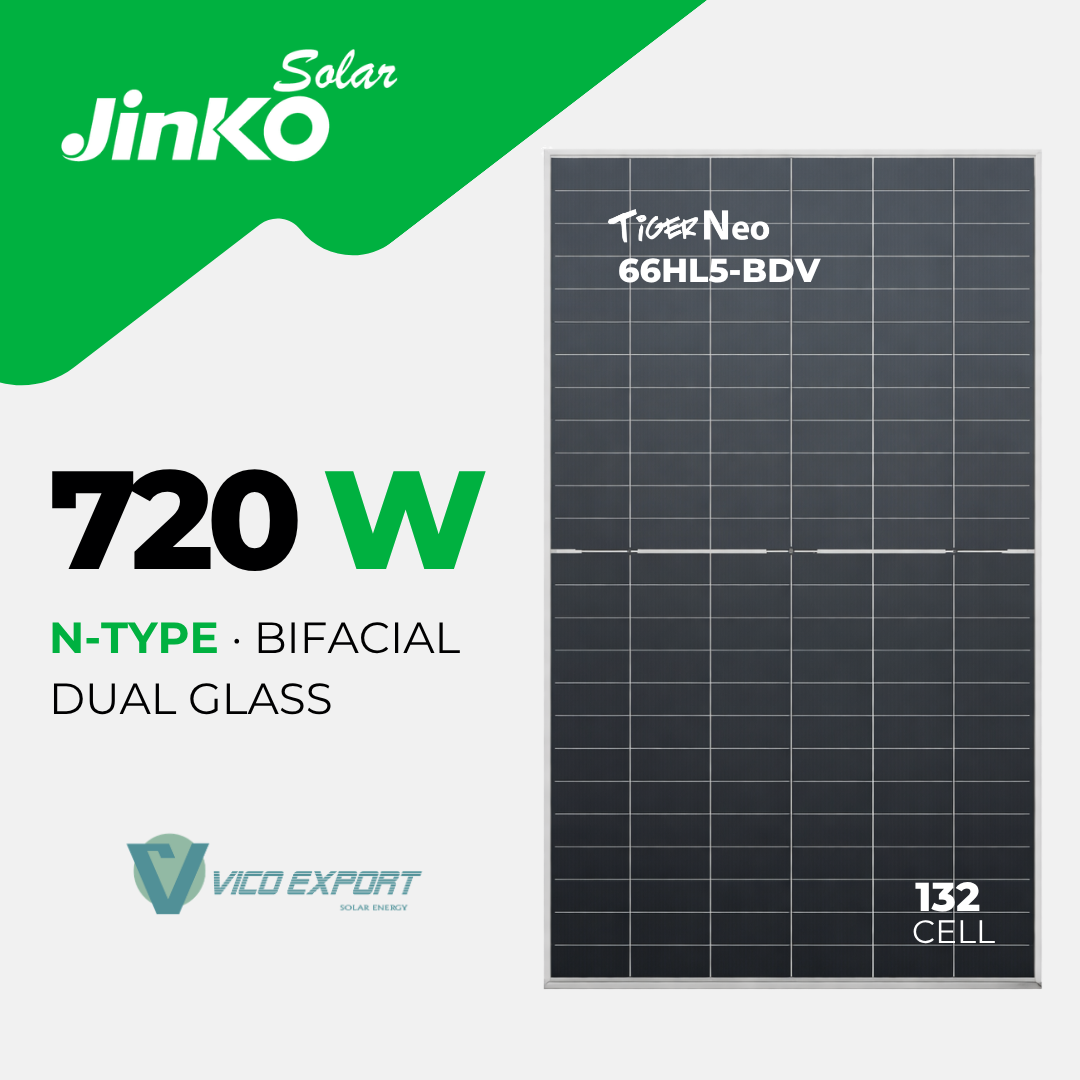

JinkoSolar Tiger Neo N-Type 720W Solar Panel | JKM720N-66HL5-BDV
The JinkoSolar Tiger Neo N-Type 720W JKM720N-66HL5-BDV solar panel is a bifacial dual-glass photovoltaic module designed for commercial and industrial installations and utility-scale projects. It features monocrystalline N-Type TOPCon cells with HOT 3.0 technology and achieves an efficiency of 23.18%.
Its bifacial design generates energy from solar irradiation received on both the front and rear sides. The combination of N-Type technology, SMBB interconnections and dual-glass construction delivers high energy yields, reduced LID and LeTID losses and enhanced long-term reliability.
Key features
Technical specifications
Electrical data under STC conditions
| Maximum power (Pmax) | 720 Wp |
| Voltage at maximum power (Vmp) | 40.89 V |
| Current at maximum power (Imp) | 17.61 A |
| Open-circuit voltage (Voc) | 49.04 V |
| Short-circuit current (Isc) | 18.67 A |
| Module efficiency | 23.18% |
| Power tolerance | 0/+3% |
| Maximum system voltage | 1,500 V DC |
| Maximum series fuse rating | 35 A |
BNPI bifacial electrical data
- Maximum power (Pmax): 795 Wp
- Voltage at maximum power (Vmp): 40.92 V
- Current at maximum power (Imp): 19.43 A
- Open-circuit voltage (Voc): 48.99 V
- Short-circuit current (Isc): 20.63 A
Mechanical data
- Cell type: monocrystalline N-Type
- Number of cells: 132 cells (66 × 2)
- Dimensions: 2,384 × 1,303 × 33 mm
- Weight: 37.5 kg
- Front glass: 2.0 mm with anti-reflective coating
- Rear glass: 2.0 mm, heat-strengthened
- Frame: anodised aluminium
- Junction box: IP68 protection rating
- Protection class: Class II
- IEC fire resistance rating: Class C
- Connector type: JK03M, JK03M2 or other options
- MC4 and MC4-Evo2 available upon request and subject to availability
- Cable cross-section: 4.0 mm²
- Cable length: 400 mm positive and 200 mm negative, or customised length
Temperature coefficients and operating conditions
- Temperature coefficient of Pmax: −0.29%/°C
- Temperature coefficient of Voc: −0.25%/°C
- Temperature coefficient of Isc: +0.045%/°C
- Operating temperature: −40°C to +70°C
- Maximum system voltage: 1,500 V DC
- Pmax bifaciality coefficient: 80 ± 5%
- Isc bifaciality coefficient: 80 ± 5%
Warranty and degradation
- Product warranty: 12 years
- Linear power warranty: 30 years
- Maximum degradation during the first year: 1%
- Subsequent annual degradation: 0.40%
- Guaranteed power at the end of year 30: 87.4%
JinkoSolar 720W panel for professional projects
The JinkoSolar Tiger Neo 720W combines high power output, N-Type TOPCon technology, bifacial energy generation and dual-glass construction. Its 23.18% efficiency helps increase installed capacity and reduce the number of modules required in commercial, industrial and utility-scale projects.
At Vico Export Solar Energy, we distribute JinkoSolar panels and photovoltaic equipment for installers, engineering companies and EPC contractors, with domestic and international shipping.
