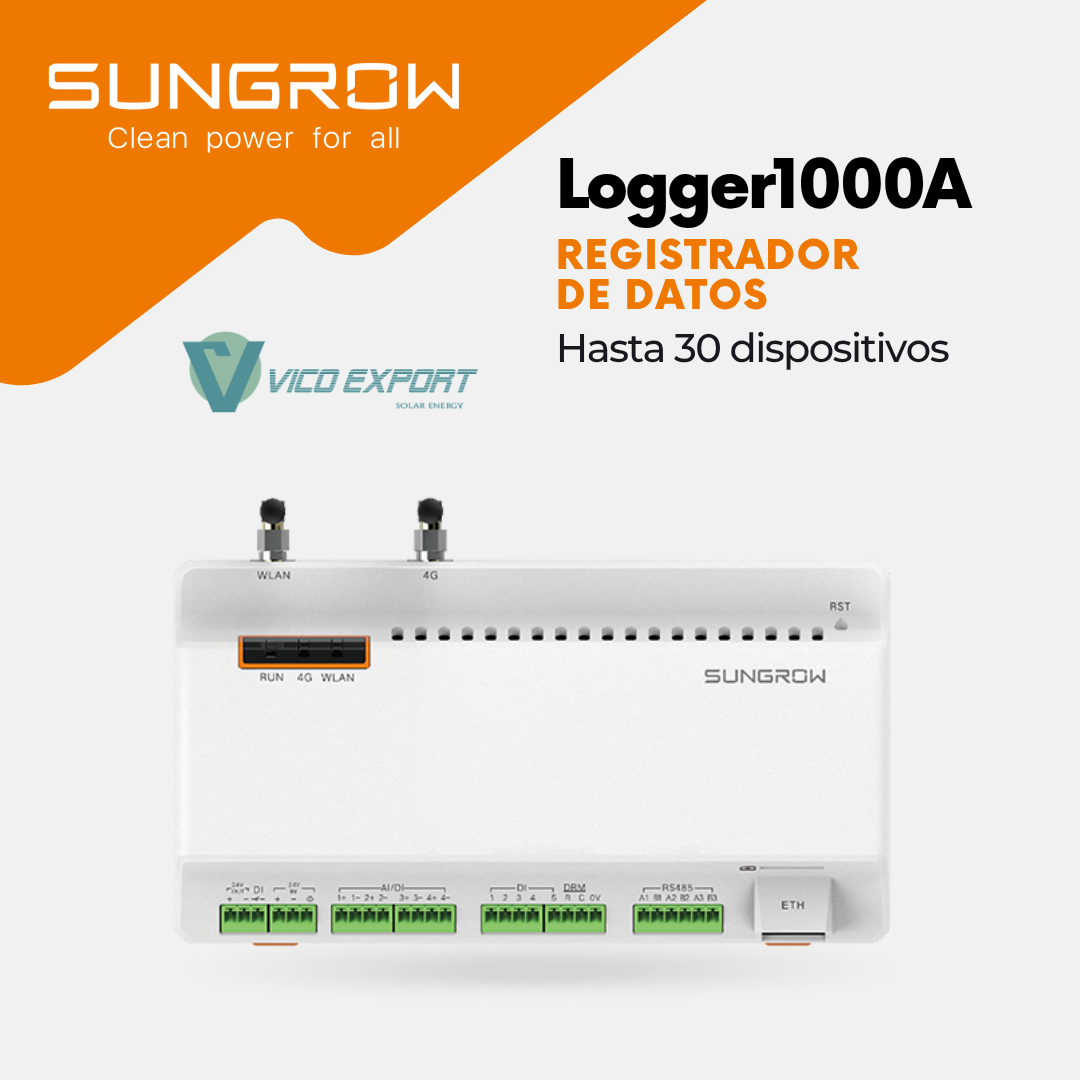

Registrador de datos Sungrow Logger1000A para monitorización fotovoltaica

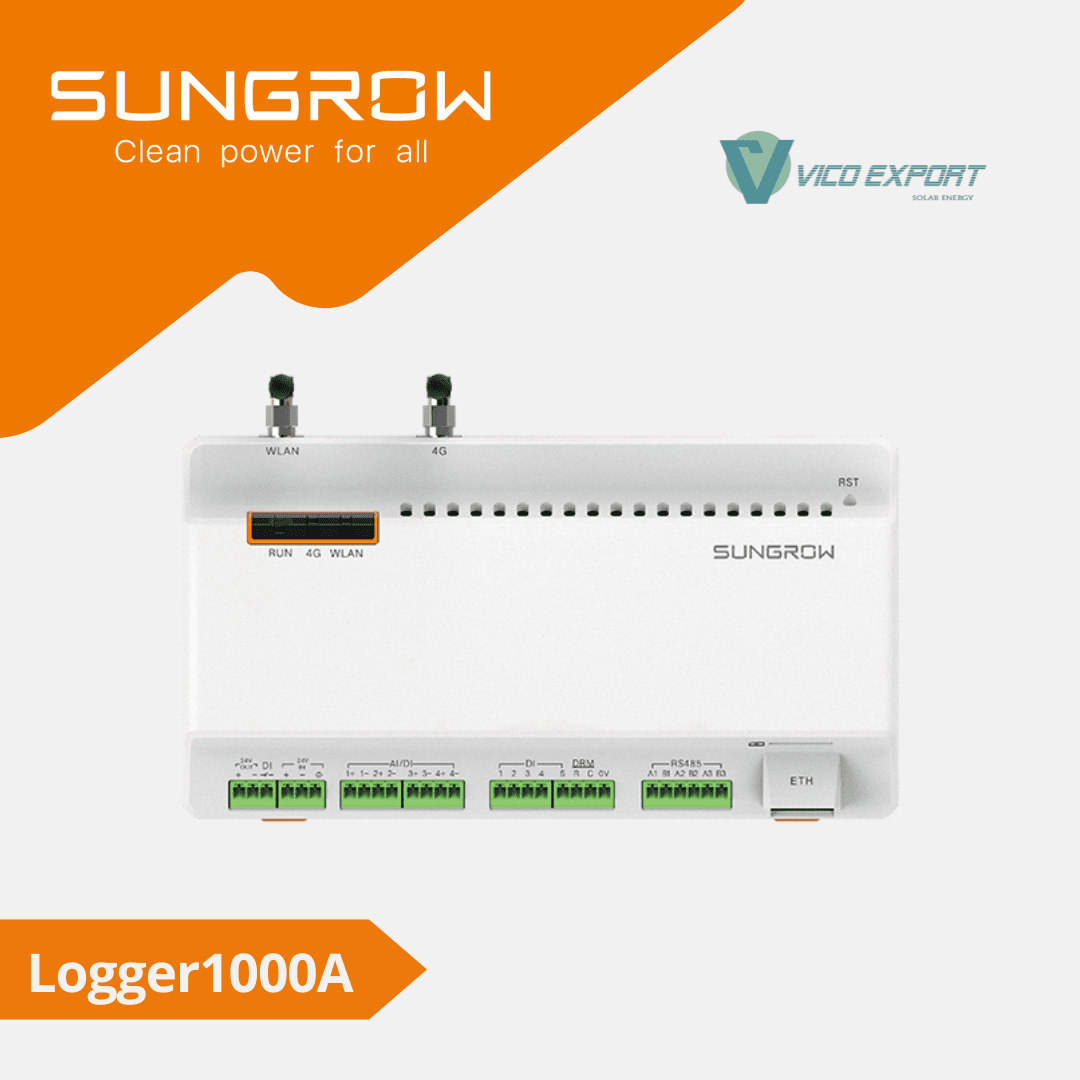

Sungrow Logger1000A Data Logger for Photovoltaic Monitoring

Sungrow Logger1000A Data Logger for Photovoltaic Monitoring
Up to 30 devicesWeb serverRS485 / Ethernet / WLANPower control
Data acquisition and protocol conversion device for photovoltaic plants. It centralises compatible equipment, enables browser-based monitoring and supports batch inverter configuration and firmware updates, as well as active and reactive power control.
DIN rail or wall mounting with IP20 protection. Mobile communication must be verified according to the regional version and network operator; the linked datasheet corresponds to the AU version.
Sold per unit · Price shown excluding VAT
Iniciar sesión para ver precios
SKU: Logger1000A Categories: , , Tags: , , , ,

Description

Sungrow Logger1000A Data Logger for Photovoltaic Monitoring

The Sungrow Logger1000A is a data acquisition and protocol conversion device for photovoltaic installations. It centralises communication with up to 30 compatible devices, including inverters, combiner boxes, weather stations, energy meters and sensors.
It acts as a communication gateway and facilitates plant monitoring, configuration and maintenance. It includes an integrated web server for access through a computer or smartphone browser, as well as active and reactive power control functions and simultaneous configuration of compatible inverters.

Main Features

Up to 30 devices

Centralised data collection from compatible equipment, allowing the installation to be monitored from a single device.
Flexible connectivity

Communication via RS485, Ethernet, WLAN and 4G, depending on the regional version and configuration.
Integrated web server

Monitoring and configuration through a browser from a computer or smartphone, without requiring an application for this type of access.
Group inverter maintenance

Batch parameter configuration and firmware updates for compatible equipment.
Power control

Active and reactive power control functions for integration into plant management.
Inputs for equipment and sensors

Three RS485 interfaces, five digital inputs and four analogue inputs for compatible signals.

Sungrow Logger1000A Technical Specifications

Specification Logger1000A
Maximum number of devices 30
RS485 interfaces 3
Ethernet 1 RJ45 port, 10/100 Mbps
Digital inputs 5; maximum voltage 24 V DC
Analogue inputs 4; 4–20 mA or 0–10 V DC signals
WLAN 802.11 b/g/n/ac; 2.4 and 5 GHz; HT20/40/80 MHz
Mobile communication 4G, depending on regional version bands
DC power input 24 V DC / 1.2 A
DC output 24 V DC / 0.5 A
Power consumption <10 W
Protection rating IP20
Dimensions: width × height × depth 200 × 110 × 60 mm
Device weight 500 g
Mounting DIN rail or wall mounting
Data acquisition and compatible equipment
The Logger1000A collects data and performs protocol conversion to integrate compatible equipment within the photovoltaic plant.
  • Inverters.
  • Combiner boxes.
  • Weather stations.
  • Energy meters.
  • Sensors and other supported equipment.
The maximum of 30 devices refers to the total number of connected devices. The compatibility of each model, protocol and connection layout must be verified according to Sungrow documentation.
Monitoring, configuration and maintenance
  • Integrated web server for monitoring and configuration.
  • Access through a computer or smartphone browser.
  • Local monitoring.
  • Maintenance through remote web access, depending on network configuration.
  • Batch inverter parameter configuration.
  • Batch inverter firmware updates.
  • Automatic Modbus address assignment.
Power control and signal integration
  • Active and reactive power control.
  • 3 RS485 interfaces.
  • 5 digital inputs, with a maximum voltage of 24 V DC.
  • 4 analogue inputs for 4–20 mA or 0–10 V DC signals.
  • 24 V / 0.5 A DC output.
The implementation of power control depends on the connected equipment, available signals and project configuration. The datasheet alone does not certify a zero-export function or compliance with specific grid connection requirements.
Ethernet, WLAN and mobile communication
  • Ethernet: 1 RJ45 port, 10/100 Mbps.
  • WLAN: 802.11 b/g/n/ac, 2.4 and 5 GHz bands.
  • Specified WLAN channel widths: HT20/40/80 MHz.
  • LTE FDD for the documented AU version: B1, B3, B5 and B8.
  • LTE TDD for the documented AU version: B40.
  • WCDMA for the documented AU version: B1 and B8.
The listed mobile bands correspond to the linked AU datasheet. Check the regional version of the device and compatibility with the local network operator before using mobile communication.
Power supply, mounting and environmental conditions
  • Power input: 24 V DC / 1.2 A.
  • Power consumption: less than 10 W.
  • DIN rail or wall mounting.
  • IP20 protection rating.
  • Operating temperature: −30 to 60 °C.
  • Storage temperature: −40 to 70 °C.
  • Relative humidity: ≤95%, non-condensing.
  • Altitude: ≤4,000 m.
  • Dimensions: 200 × 110 × 60 mm.
  • Device weight: 500 g.
Install the device in a protected location and in accordance with the manufacturer’s instructions. Check the power supply and accessories included with the specific product reference.
At Vico Export Solar Energy, we supply Sungrow communication and monitoring solutions for professionals in the photovoltaic sector. Contact us to check availability, regional version and Logger1000A compatibility for your project.

Datasheet and Enquiries

Download the Sungrow Logger1000A datasheet, AU version, to review its connections and technical specifications.

Additional information

Weight 0.5 kg
Dimensions 20 × 11 × 6 cm
