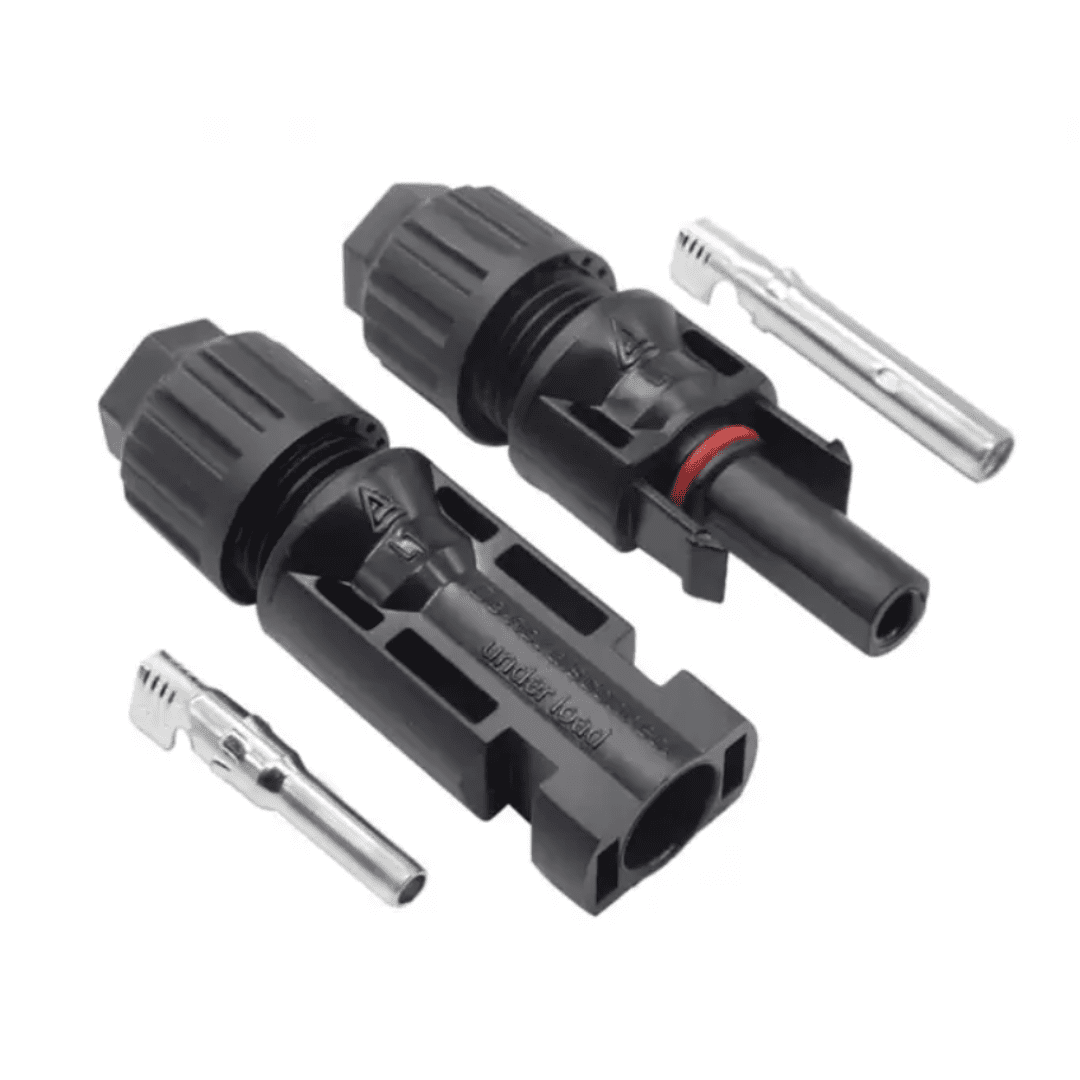

MC4 Connectors (Male and Female)
MC4 connectors are the standard in the solar industry for safely and efficiently connecting photovoltaic modules.
- MC4 Male connector (positive)
- MC4 Female Connector (negative)
Main Features:
Universal compatibility: Used by most solar panel manufacturers.
Secure and watertight connection: Designed to withstand weathering and ensure efficient power transmission.
Easy installation: Incorporates metal shanks for crimping wires with specific tools.
Safety design: Locking system that prevents accidental disconnection.
Use and Installation: Photovoltaic modules are equipped with MC4 connectors from the factory. When making a connection, it is essential to ensure that the wiring follows the proper color code and that the connectors fit with their respective opposite poles.
To crimp the wires correctly:
– Use 6 mm² cross-section solar cable.
– Strip about 1 cm from the end of the cable.
– Insert the corresponding metal rod and crimp.
– Insert the stem into the connector body until you hear a click.
– Screw on the connector cap to seal and secure the connection.
