Description

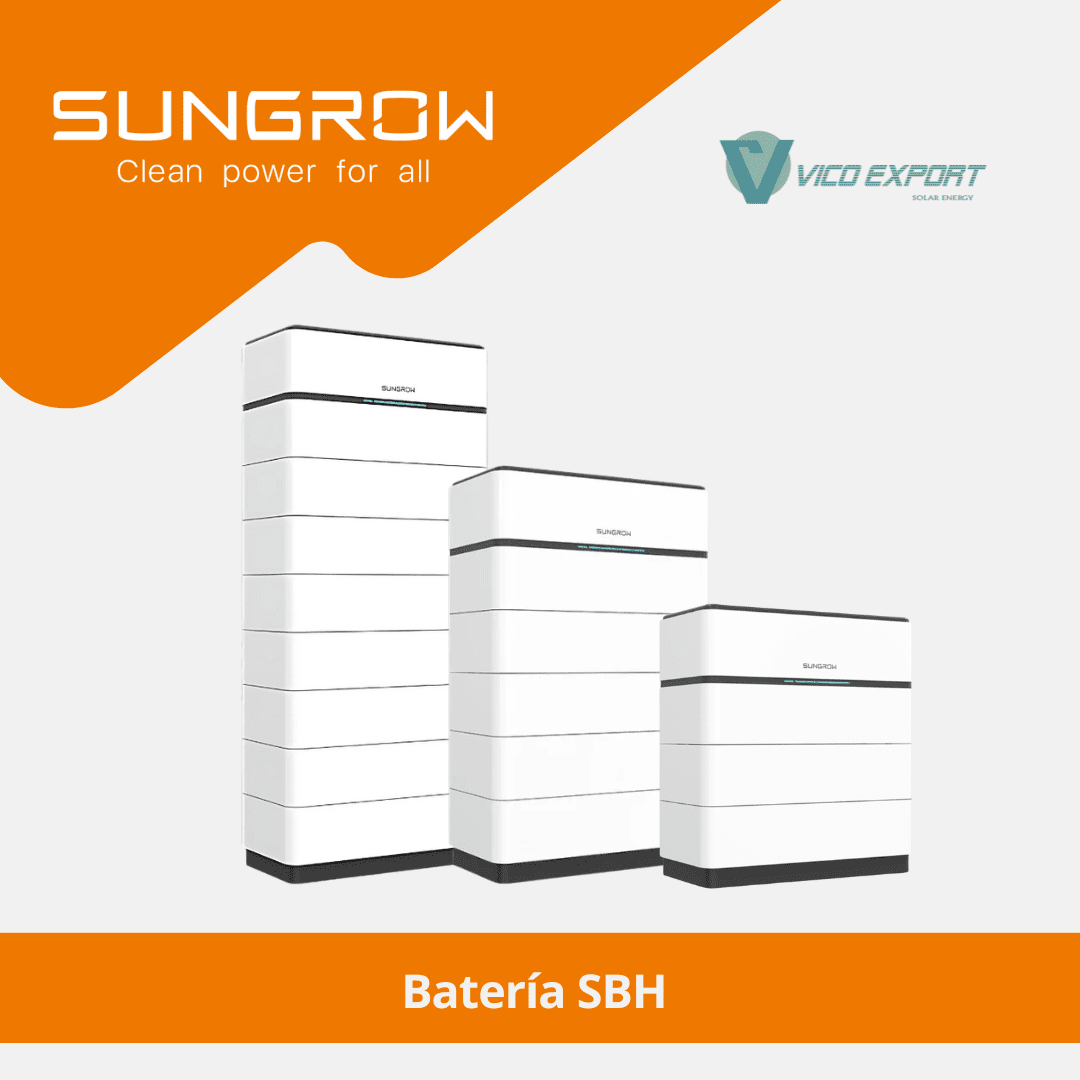

Sungrow’s SBH battery is a high voltage solution designed to maximize the performance of solar installations. Perfect for projects requiring high capacity and power, it stands out for its flexibility and ease of installation.
Key features:
- Scalable capacity: Available in a range of 10 kWh to 40 kWh, configurable with up to 8 modules.
- Superior power: Up to 28.16 kW of rated DC power with a maximum continuous current of 50 A.
- Energy efficiency: Harnesses up to 100% of stored energy.
- Easy installation: Plug & play design eliminates the need for wiring between modules.
- Durability and safety: Manufactured with LiFePO4 cells and a certified multi-stage protection design.
- Outdoor adaptable: IP55 rated, ideal for indoor or outdoor operation.
- Operating temperature range: -20 °C (discharge) to 50 °C.
Technical specifications:
- Battery type: lithium-ferrophosphate (LiFePO4) prismatic cells.
- Dimensions (W x H x D): From 675 x 580 x 350 mm to 675 x 1540 x 350 mm (depending on modules).
- Weight: From 106 kg to 376 kg.
- Warranty: 10 years.
- Certifications: CE, IEC 62619, IEC 62040, among others.
Ideal for high performance solar installations that require large storage capacities and maximum power.
