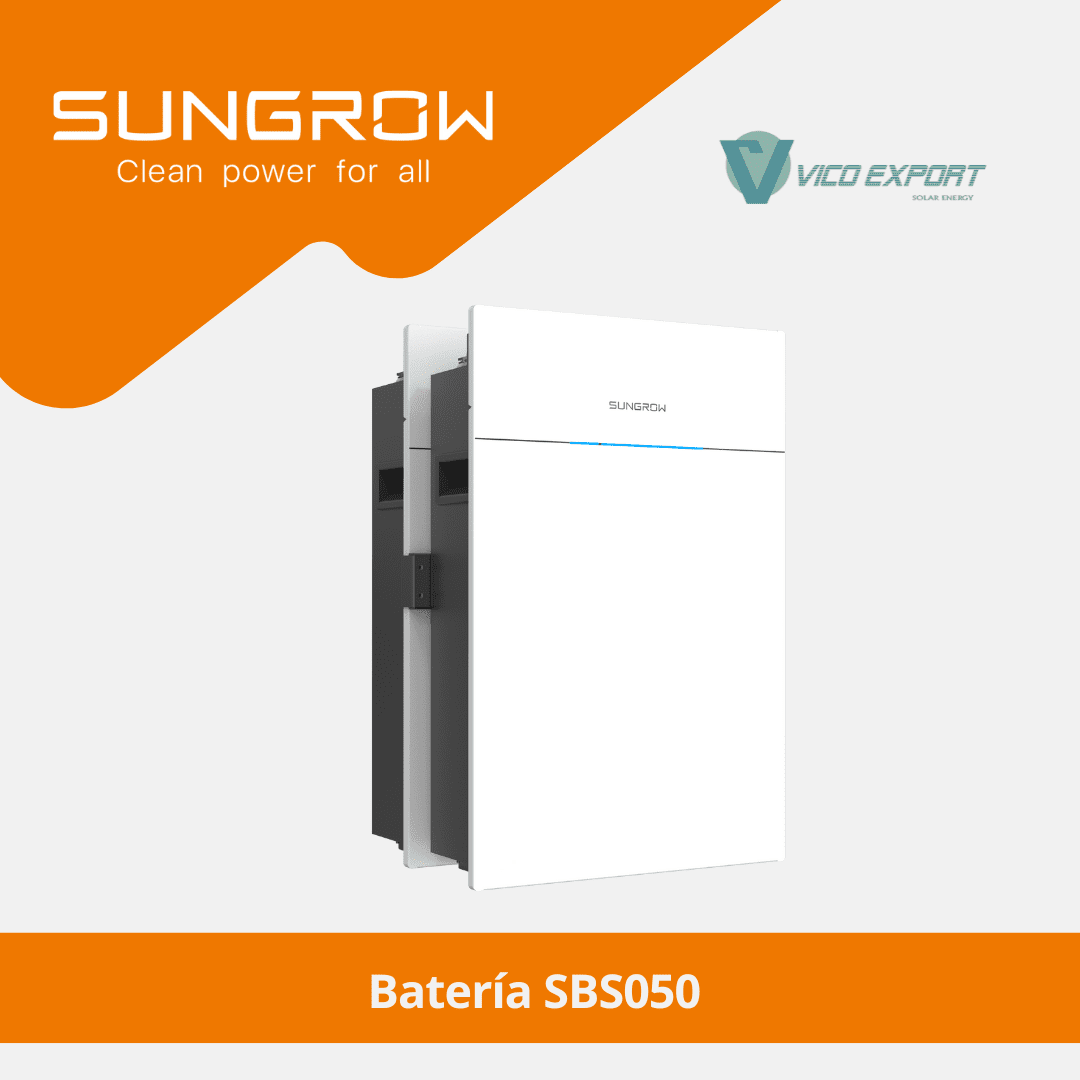

Sungrow SBS050 Battery | 5.12 kWh High Voltage
KEY FEATURES
High-performance LFP technology: The SBS050 battery uses lithium iron phosphate (LiFePO₄) prismatic cells, ensuring long service life, enhanced safety, and stable performance. It provides up to 100% usable energy and supports off-grid operation with up to 5 kW output per module.
Modular and scalable: It supports parallel connection of up to 4 modules, reaching a total capacity of 20.48 kWh. No additional junction box is required for expansion, simplifying installation and system growth.
Compact and versatile design: With a depth of only 182 mm and a weight of 58 kg, it can be easily wall-mounted or floor-mounted, suitable for both indoor and outdoor use. The ideal solution for residential installations with space constraints.
Easy integration and operation: The battery includes LED indicators for status and charge level, and connects via a CAN interface for seamless communication with the inverter. Its plug & play design minimizes installation time.
Integrated safety protection: Equipped with overvoltage, overcurrent, over/under-temperature protection and a built-in DC breaker. Certified under UN38.3 and IEC 62619 for maximum reliability.
TECHNICAL SPECIFICATIONS
Electrical Data:
- Battery type: Lithium Iron Phosphate (LiFePO₄), prismatic cells
- Usable capacity: 5.12 kWh
- Nominal voltage: 102.4 V
- Voltage range: 86.4 V – 116.8 V
- Nominal charge/discharge current: 30 A / 50 A
- Max. charge/discharge current: 50 A / 50 A
- Communication: CAN
- Indicators: LED status and SOC display
- Protection: Overvoltage, overcurrent, temperature, DC breaker
Mechanical and Environmental Data:
- Dimensions: 515 × 780 × 182 mm
- Weight: 58 kg
- Installation: Floor- or wall-mounted
- Location: Indoor / outdoor
- Temperature range: Charging (0 °C to 55 °C), Discharging (–20 °C to 50 °C)
- Relative humidity: 0% – 95% (non-condensing)
- Max. altitude: 2000 m
- Cooling method: Natural convection
- Protection rating: IP55
- Certifications: UN38.3, IEC 62619
ADDITIONAL BENEFITS
- Compatible with Sungrow hybrid inverters
- Up to 20.48 kWh per system with easy expansion
- Quick installation without additional junction box
- Ideal for residential applications requiring energy backup
The Sungrow SBS050 high-voltage battery is a secure, efficient, and scalable solution for residential solar installations requiring reliable energy storage, offering compact design and seamless hybrid inverter integration.
