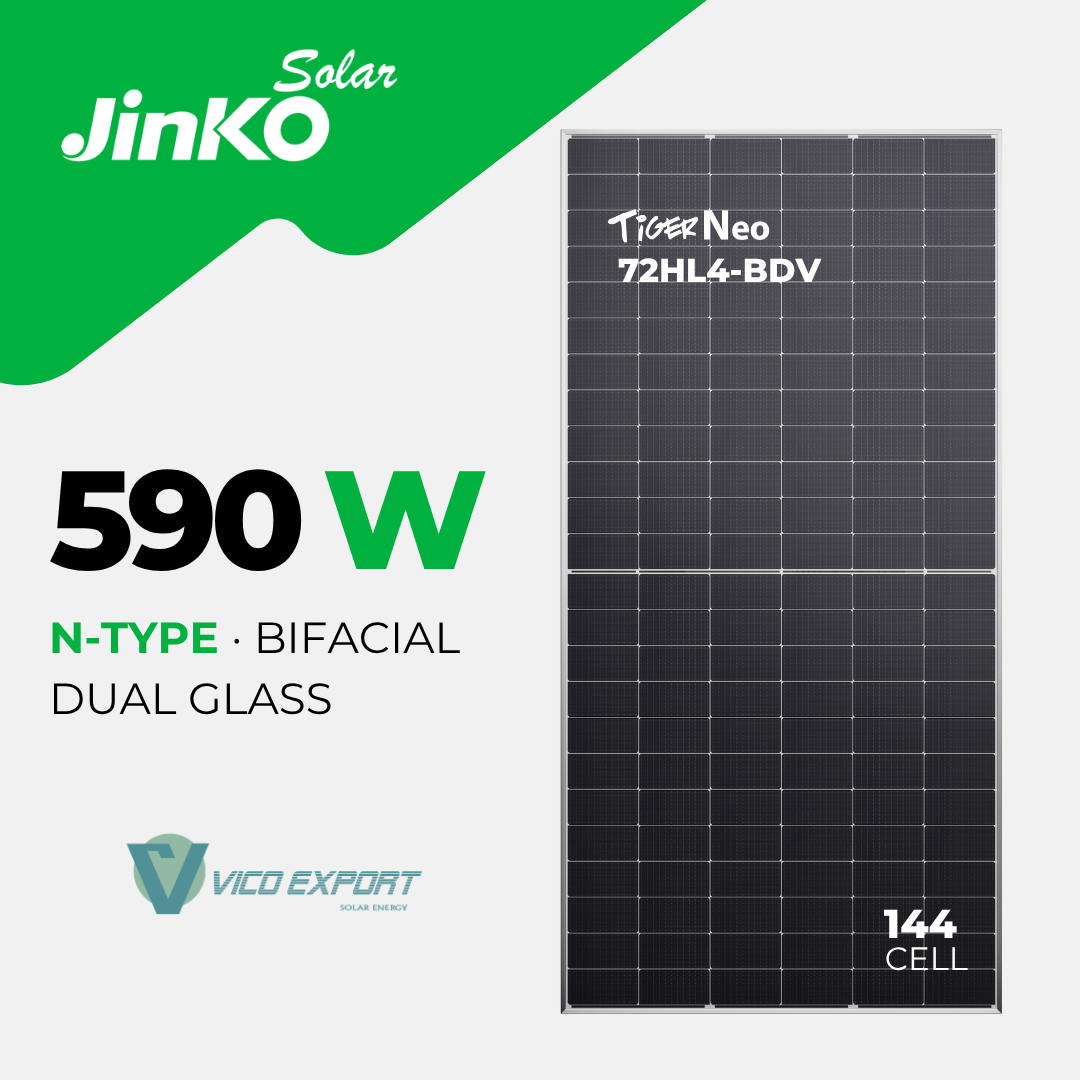

JinkoSolar Tiger Neo N-Type 590W Solar Panel | JKM590N-72HL4-BDV
The JinkoSolar Tiger Neo N-Type 590W JKM590N-72HL4-BDV solar panel is a bifacial dual-glass photovoltaic module designed for commercial and industrial installations and utility-scale projects. It features monocrystalline N-Type TOPCon cells with HOT 3.0 technology and achieves an efficiency of 22.84%.
Its bifacial design generates energy from solar irradiation received on both the front and rear sides. The combination of N-Type technology, SMBB interconnections and dual-glass construction delivers high energy yields, reduced LID and LeTID losses and enhanced long-term reliability.
Key features
Technical specifications
Electrical data under STC conditions
| Maximum power (Pmax) | 590 Wp |
| Voltage at maximum power (Vmp) | 44.17 V |
| Current at maximum power (Imp) | 13.36 A |
| Open-circuit voltage (Voc) | 52.90 V |
| Short-circuit current (Isc) | 14.07 A |
| Module efficiency | 22.84% |
| Power tolerance | 0/+3% |
| Maximum system voltage | 1,500 V DC |
| Maximum series fuse rating | 30 A |
BNPI bifacial electrical data
- Maximum power (Pmax): 649 Wp
- Voltage at maximum power (Vmp): 44.33 V
- Current at maximum power (Imp): 14.64 A
- Open-circuit voltage (Voc): 52.93 V
- Short-circuit current (Isc): 15.37 A
Mechanical data
- Cell type: monocrystalline N-Type
- Number of cells: 144 cells (72 × 2)
- Dimensions: 2,278 × 1,134 × 30 mm
- Weight: 31 kg
- Front glass: 2.0 mm with anti-reflective coating
- Rear glass: 2.0 mm, heat-strengthened
- Frame: anodised aluminium alloy
- Junction box: IP68 protection rating
- Protection class: Class II
- IEC fire resistance rating: Class C
- Connector type: JK03M, JK03M2 or other options
- MC4 and MC4-Evo2 available upon request and subject to availability
- Cable cross-section: 4.0 mm²
- Cable length: 400 mm positive and 200 mm negative, or customised length
Temperature coefficients and operating conditions
- Temperature coefficient of Pmax: −0.29%/°C
- Temperature coefficient of Voc: −0.25%/°C
- Temperature coefficient of Isc: +0.045%/°C
- Operating temperature: −40°C to +70°C
- Maximum system voltage: 1,500 V DC
- Voc bifaciality coefficient: 98 ± 5%
- Isc bifaciality coefficient: 80 ± 5%
- Pmax bifaciality coefficient: 80 ± 5%
Warranty, degradation and certifications
- Product warranty: 12 years
- Linear power warranty: 30 years
- Maximum degradation during the first year: 1%
- Subsequent annual degradation: 0.40%
- Guaranteed power at the end of year 30: 87.4%
- Certifications: IEC 61215:2021, IEC 61730:2023, IEC 61701, IEC 62716, IEC 60068 and IEC 62804
JinkoSolar 590W panel for professional projects
The JinkoSolar Tiger Neo 590W combines high power output, N-Type TOPCon technology, bifacial energy generation and dual-glass construction. Its 2,278 × 1,134 mm format helps increase installed capacity and optimise the number of modules required in commercial and industrial installations and utility-scale projects.
At Vico Export Solar Energy, we distribute JinkoSolar panels and photovoltaic equipment for installers, engineering companies and EPC contractors, with domestic and international shipping.
