ATMOCE MA-ESSKits-S Single-Phase Management Kit for M-ELV Battery
The ATMOCE MA-ESSKits-S single-phase management kit enables the integration of the ATMOCE M-ELV battery into a single-phase installation. Its main component, the M-Gateway MG100, centralises system communication and energy management, with configuration through the ATMOZEN app and remote monitoring functions.
Required accessory for the ATMOCE battery in single-phase installations
This kit is sold separately from the 7 kWh M-ELV MS-7K-U battery. For three-phase installations, select the MA-ESSKits-T kit.
Management and Communication for Your ATMOCE System
Single-phase installation
Kit version designed to integrate the ATMOCE energy storage system into single-phase installations.

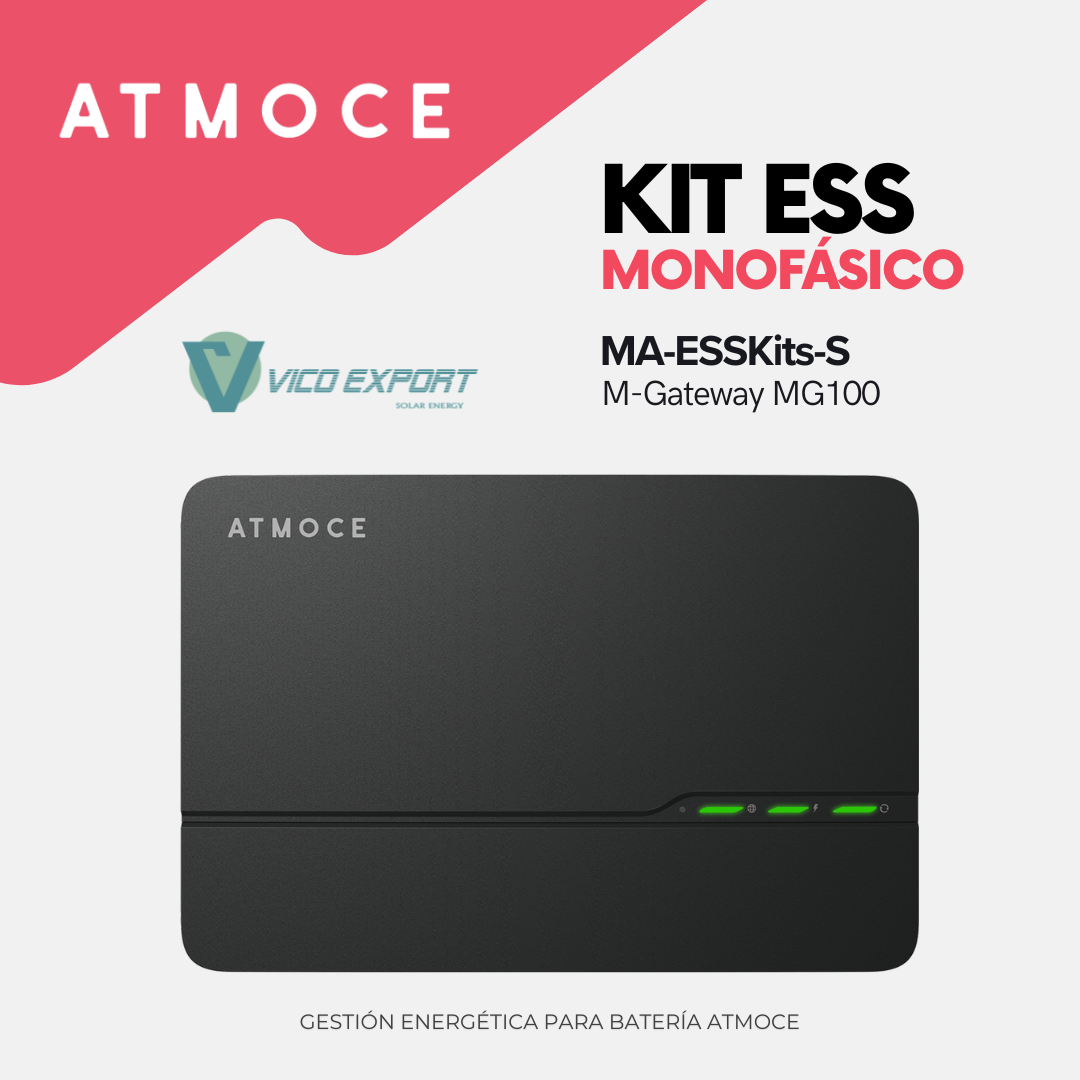

M-Gateway MG100
Centralises communication between compatible devices and facilitates energy management within the installation.
Configuration with ATMOZEN
The app guides system installation, configuration and activation.
Remote monitoring
Connection to ATMOCE Cloud via Wi-Fi or Ethernet for remote management functions.
Multiple communication options
The gateway features PLC, Wi-Fi, Bluetooth, Ethernet, CAN and RS485 to communicate with compatible devices.
Modbus integration
Supports access by external energy management systems via the Modbus protocol, subject to system configuration and compatibility.
Components to Complete the Installation
For a single-phase installation with ATMOCE energy storage, combine the MA-ESSKits-S kit with the M-ELV MS-7K-U battery. The battery is purchased separately.
If you need backup power during a grid outage, enquire about a configuration using the single-phase M-Backup MU100-S. This optional accessory is sold separately; backup operation requires a compatible and correctly configured installation.
M-Gateway MG100 Technical Specifications
The following specifications apply to the MG100 gateway described in the datasheet. They do not represent the dimensions or weight of the complete kit or its packaging.
| Specification | M-Gateway MG100 |
|---|---|
| Single-phase nominal voltage | 220 / 230 / 240 V |
| Operating voltage range, line to neutral | 184–276 V |
| Nominal frequency | 50 / 60 Hz |
| Power consumption | Less than 5 W without a USB device / less than 20 W with a USB device |
| Communication | PLC, Wi-Fi, BLE, Ethernet, CAN and RS485 |
| Gateway dimensions, width × height × depth | 221 × 148 × 42 mm |
| Gateway weight | 0.6 kg |
| Gateway IP rating | IP30 |
| Operating ambient temperature | −30 to +65 °C |
| Cooling | Natural convection |
| Indicators | 3 LEDs |
More information on connectivity and installation
The MG100 features CAN communication for the battery, 2.4 GHz Wi-Fi and Ethernet connectivity for ATMOCE Cloud, and 2.4 GHz Bluetooth for the ATMOZEN app.
It includes interfaces for measurement using current transformers, digital inputs and outputs, and RS485 communication. Its memory can store data for more than one year.
The gateway must be installed in a location suitable for its IP30 rating. Components must be configured and connected in accordance with the manufacturer’s documentation.
ATMOCE Single-Phase Kit for Professionals
At Vico Export, we help you select the components for your ATMOCE installation. Contact us to confirm compatibility with your existing inverter, the kit contents and the configuration required for energy storage or backup power.
