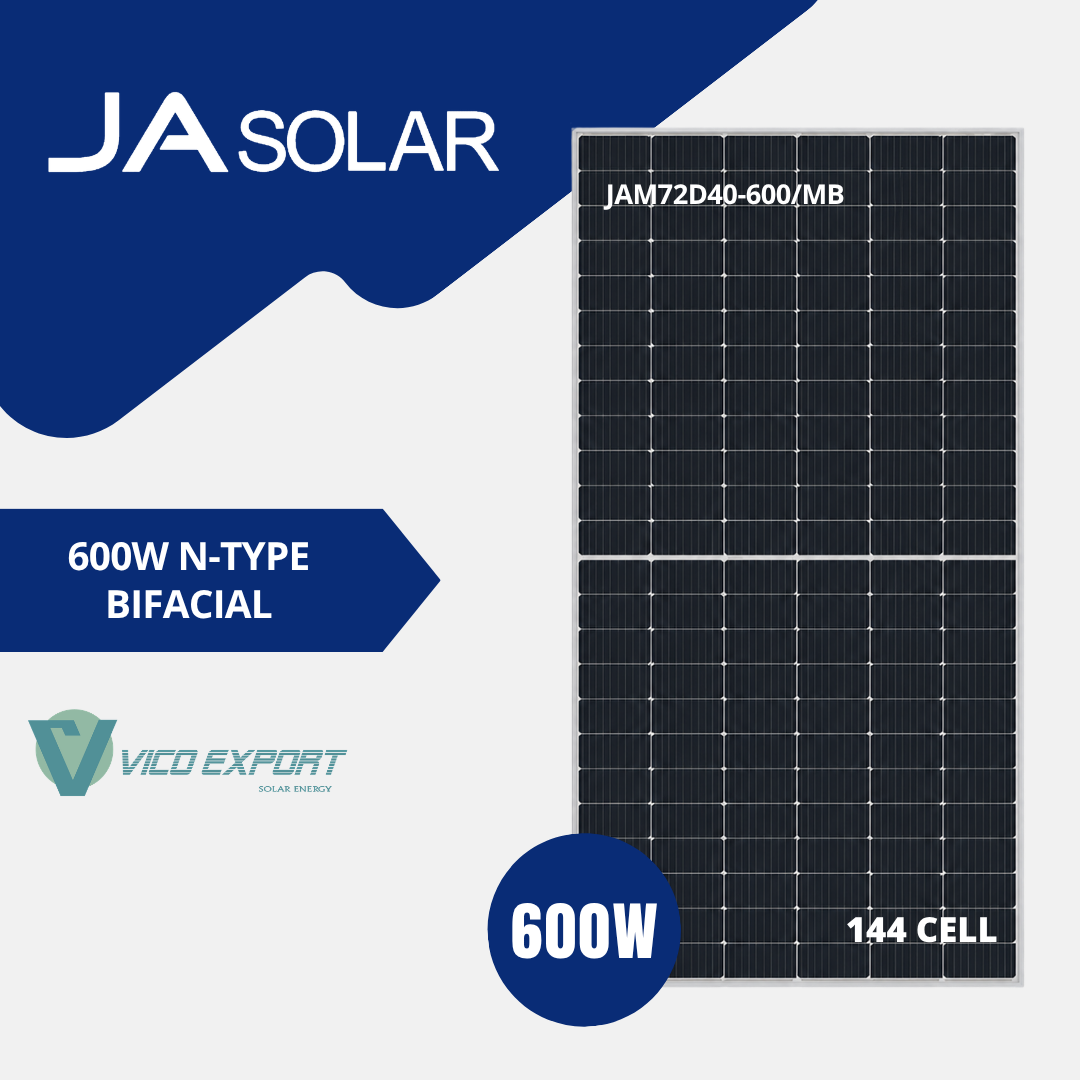

JA Solar 600W Solar Panel | JAM72D40 MB
The JA Solar 600W JAM72D40-600/MB solar panel, part of the DeepBlue 4.0 Pro series, features N-Type Bycium+ cells, MBB Half-Cell technology and a bifacial double-glass design. It offers a module efficiency of 23.2% and is designed for commercial, industrial and utility-scale photovoltaic installations.
Its N-Type technology provides lower degradation, an optimised temperature coefficient and strong performance under low-irradiance conditions. In addition, its 80% ± 5% bifaciality enables the module to use solar radiation received on its rear side to increase energy generation.
MAIN FEATURES
- Rated power: 600 W.
- Module efficiency: 23.2%.
- Cell technology: N-Type Bycium+.
- Bifacial design: energy generation from both sides.
- Double-glass construction: 2 mm front and rear glass.
- MBB Half-Cell technology: improves energy capture and reduces resistive losses.
- Bifaciality: 80% ± 5%.
- Low degradation: 1% during the first year and 0.4% annually over the following 29 years.
- Product warranty: 12 years.
- Linear power output warranty: 30 years.
TECHNICAL SPECIFICATIONS
Electrical data under STC conditions
- Maximum power (Pmax): 600 W.
- Open-circuit voltage (Voc): 52.79 V.
- Voltage at maximum power (Vmp): 44.85 V.
- Short-circuit current (Isc): 14.04 A.
- Current at maximum power (Imp): 13.38 A.
- Module efficiency: 23.2%.
- Power tolerance: 0/+3%.
- Maximum system voltage: 1,500 V DC.
- Maximum series fuse rating: 30 A.
Mechanical data
- Dimensions: 2,278 × 1,134 × 30 mm.
- Weight: 31.8 kg.
- Number of cells: 144 cells, 6 × 24 configuration.
- Cell type: monocrystalline.
- Front and rear glass: 2.0 mm + 2.0 mm.
- Junction box: IP68, 3 diodes.
- Cable cross-section: 4 mm².
- Connectors: QC 4.10-351 or MC4-EVO2A.
- Packaging configuration: 36 modules per pallet.
Temperature coefficients
- Pmax temperature coefficient: -0.290%/°C.
- Voc temperature coefficient: -0.250%/°C.
- Isc temperature coefficient: +0.045%/°C.
- NOCT: 45 ± 2°C.
- Operating temperature: -40°C to +85°C.
Mechanical resistance
- Maximum front static load: 5,400 Pa.
- Maximum rear static load: 2,400 Pa.
ADDITIONAL BENEFITS
- Higher energy generation thanks to its bifacial design.
- Excellent performance at high temperatures and under low-irradiance conditions.
- Lower degradation and high long-term stability.
- Double-glass design for enhanced strength and durability.
- Suitable for commercial, industrial and utility-scale photovoltaic projects.
- Manufactured by JA Solar, one of the world’s leading photovoltaic module manufacturers.
The JA Solar JAM72D40-600/MB 600W combines high efficiency, N-Type technology and a bifacial double-glass design to provide stable energy generation throughout the installation’s service life.
