Description

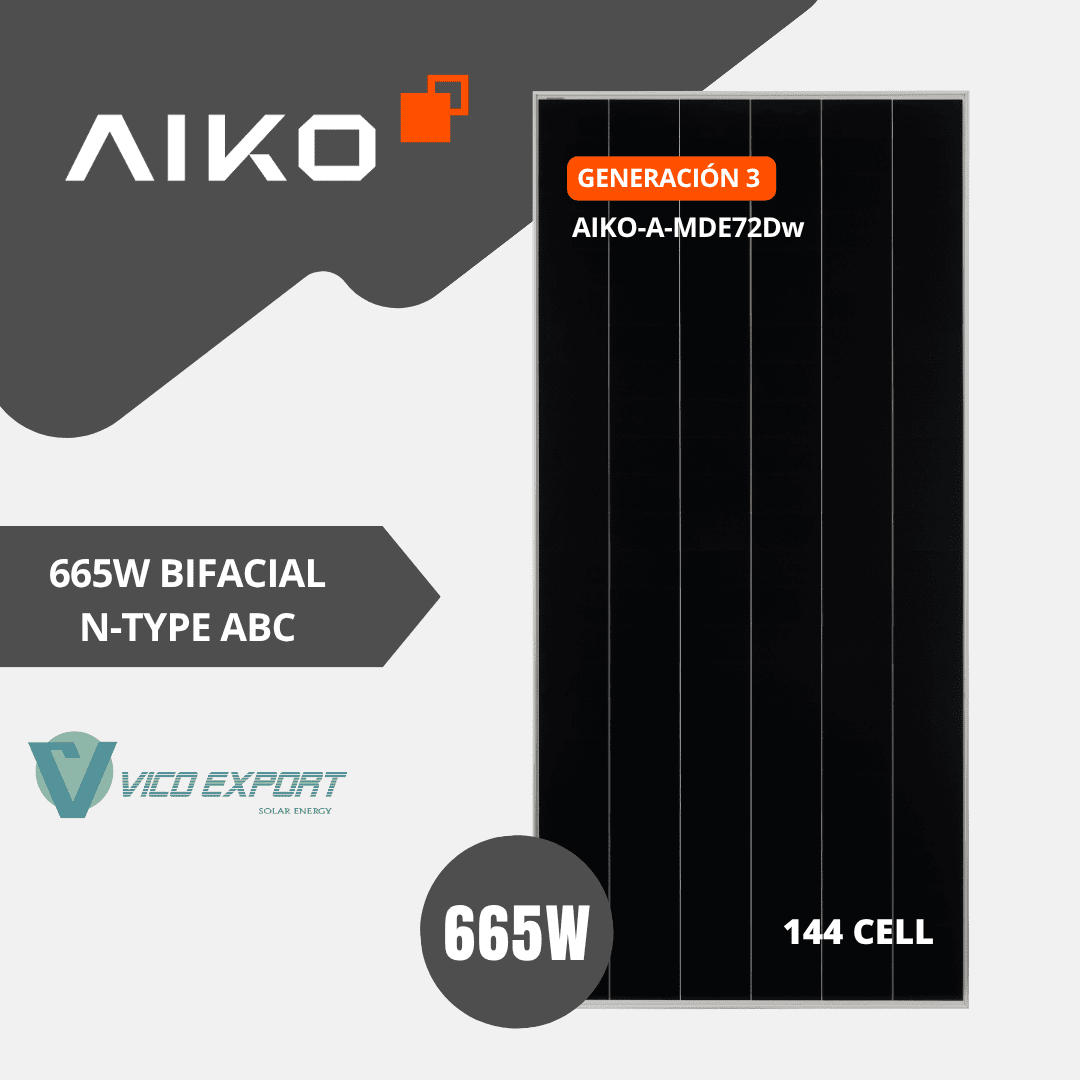

AIKO Stellar 3N+72 N-Type ABC 665W Solar Panel | AIKO-A665-MDE72Dw
The AIKO Stellar 3N+72 665W AIKO-A665-MDE72Dw solar panel is a bifacial dual-glass photovoltaic module designed for commercial and industrial projects and utility-scale solar plants. It features N-Type ABC cells and achieves an efficiency of 24.6%, enabling high installed capacity within a limited area.
ABC technology, combined with its −0.26%/°C Pmax temperature coefficient, partial-shading optimisation and resistance to microcracks, is designed to maintain stable energy production under demanding operating conditions. Its bifacial dual-glass construction improves module protection and enables energy generation from irradiation received on the rear side.
Key features
Technical specifications
Electrical data under STC conditions
| Maximum power (Pmax) | 665 Wp |
| Voltage at maximum power (Vmp) | 45.60 V |
| Current at maximum power (Imp) | 14.59 A |
| Open-circuit voltage (Voc) | 54.40 V |
| Short-circuit current (Isc) | 15.24 A |
| Module efficiency | 24.6% |
| Power tolerance | 0/+3% |
| Maximum system voltage | 1,500 V DC |
| Maximum series fuse rating | 30 A |
Electrical data under NOCT conditions
- Maximum power (Pmax): 504 Wp
- Voltage at maximum power (Vmp): 43.26 V
- Current at maximum power (Imp): 11.66 A
- Open-circuit voltage (Voc): 51.61 V
- Short-circuit current (Isc): 12.31 A
Mechanical data
- Cell type: N-Type ABC
- Number of cells: 144 cells (6 × 24)
- Dimensions: 2,382 × 1,134 × 30 mm
- Weight: 32.2 kg ±3%
- Glass: 2.0 + 2.0 mm coated, semi-tempered dual glass
- Frame: anodised aluminium
- Junction box: IP68 protection rating with 3 bypass diodes
- Connectors: MC4-compatible / MC4-Evo2A
- Cable cross-section: 4 mm² IEC / 12 AWG UL
- Cable length: 400 mm positive and 200 mm negative, ±1,400 mm or customised length
- Protection class: Class II
- Fire resistance rating: IEC Class A
Temperature coefficients and mechanical resistance
- Temperature coefficient of Pmax: −0.26%/°C
- Temperature coefficient of Voc: −0.22%/°C
- Temperature coefficient of Isc: +0.05%/°C
- Operating temperature: −40°C to +70°C
- Maximum front-side static load: 5,400 Pa
- Maximum rear-side static load: 2,400 Pa
- Hail test: 25 mm diameter at 23 m/s
Warranty, degradation and certifications
- Product warranty: 15 years
- Linear performance warranty: 30 years
- Maximum degradation during the first year: 1%
- Maximum annual degradation from years 2 to 30: 0.35%
- Guaranteed power at the end of year 30: 88.85%
- Certifications: IEC 61215, IEC 61730, 2014/35/EU, ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018
AIKO 665W panel for professional projects
The AIKO Stellar 3N+72 665W combines N-Type ABC technology, 24.6% efficiency, bifacial dual-glass construction and an optimised temperature coefficient. Its high power density helps reduce the number of modules required and contributes to optimising BOS costs in commercial and industrial projects and utility-scale solar plants.
At Vico Export Solar Energy, we distribute AIKO solar panels and photovoltaic equipment for installers, engineering companies and EPC contractors, with stock available and domestic and international shipping.
