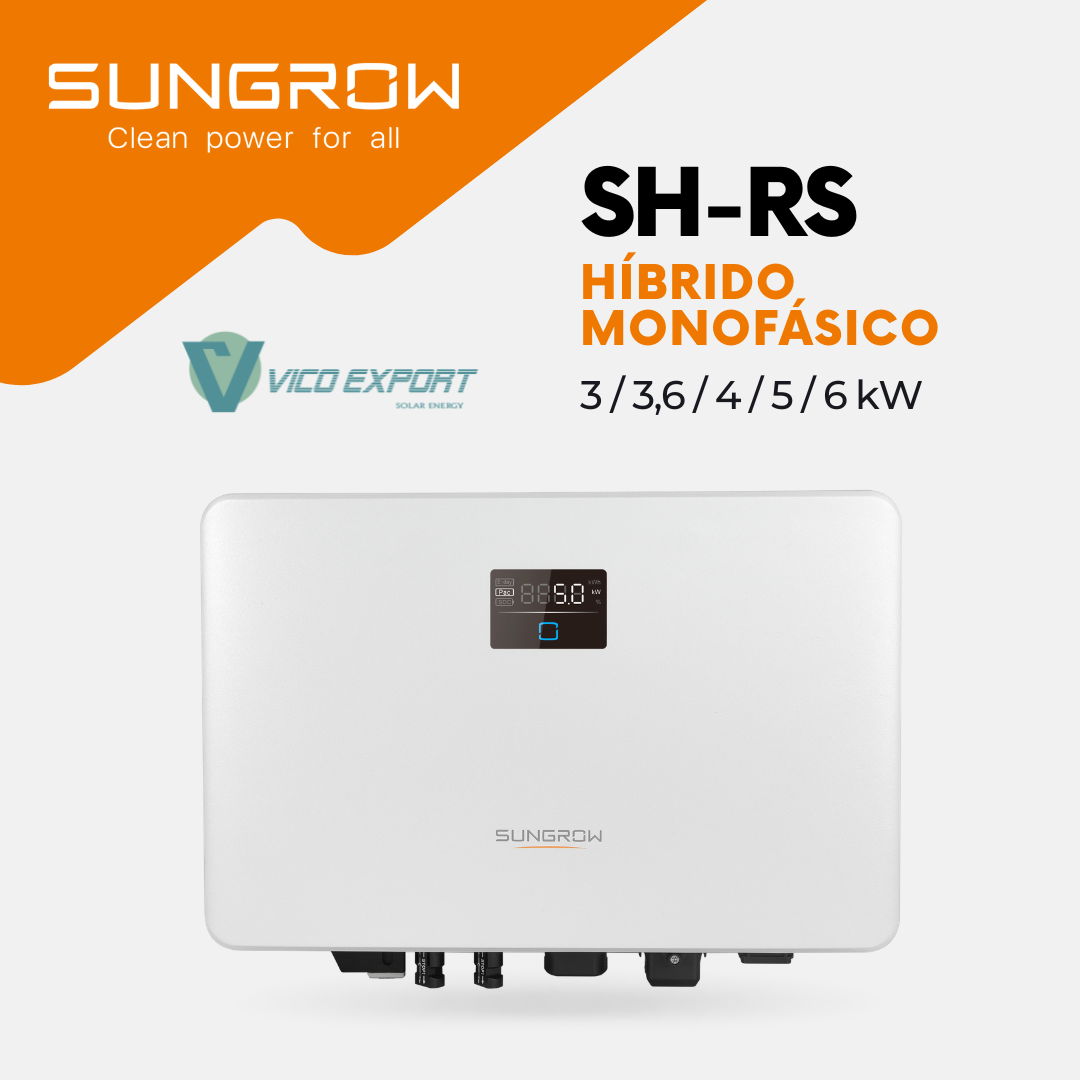

Sungrow SHRS Single-Phase Hybrid Inverter, 3 to 6 kW
The Sungrow SHRS is a single-phase hybrid inverter for residential photovoltaic systems with energy storage. The range includes the SH3.0RS, SH3.6RS, SH4.0RS, SH5.0RS and SH6.0RS models, with rated AC power outputs from 3 to 6 kW, two independent MPPT trackers and a connection for compatible lithium-ion batteries.
Its integrated energy management system manages PV generation and storage to increase the use of solar energy in the home. It features a backup output with a switchover time of less than 10 ms and monitoring through iSolarCloud, available via app and web. The range is suitable for both new installations and projects adding energy storage, depending on the system configuration.
Key Features
Single-Phase Range from 3 to 6 kW
Five models to match inverter power to the needs of your residential project.
Two Independent MPPTs
One string input per MPPT, with a maximum input current of 16 A per tracker.
High-Voltage Energy Storage
Battery voltage range from 80 to 460 V and maximum charging and discharging power of 6.6 kW, depending on the connected battery.
Backup During Grid Outages
Backup switchover in less than 10 ms to supply loads connected to the backup output, depending on the system design.
Management and Monitoring
Integrated EMS, monitoring through iSolarCloud and diagnostic functions through online I-V curve scanning.
Compact Design with IP65 Protection
18.5 kg weight, wall mounting and natural convection cooling.
Technical Specifications
Model Comparison
| Parameter | SH3.0RS | SH3.6RS | SH4.0RS | SH5.0RS | SH6.0RS |
|---|---|---|---|---|---|
| Rated AC Power | 3,000 W | 3,680 W | 4,000 W | 5,000 W | 6,000 W |
| Maximum Recommended PV Power | 4,500 Wp | 5,400 Wp | 6,000 Wp | 7,500 Wp | 9,000 Wp |
| Maximum AC Apparent Output Power | 3,000 VA | 3,680 VA | 4,000 VA | 5,000 VA | 6,000 VA |
| Maximum AC Output Current | 13.7 A | 16 A | 18.2 A | 22.8 A | 27.3 A |
| Rated Off-Grid Backup Power | 3,000 W / 3,000 VA | 3,680 W / 3,680 VA | 4,000 W / 4,000 VA | 5,000 W / 5,000 VA | 6,000 W / 6,000 VA |
| Maximum Efficiency | 97.4 % | 97.5 % | 97.6 % | 97.7 % | 97.7 % |
| European Efficiency | 97.0 % | 97.1 % | 97.2 % | 97.3 % | 97.3 % |
The PV power shown is the maximum recommended for each model. The datasheet also specifies a maximum PV input power limit of 13,000 Wp. System sizing must comply with the voltage and current limits and the full-load MPPT range specified in the manual.
PV Input and MPPT Trackers
- Maximum PV input voltage: 600 V DC.
- Minimum input voltage: 40 V DC.
- Start-up voltage: 50 V DC.
- Rated PV input voltage: 360 V DC.
- MPPT operating range: 40–560 V DC.
- Number of independent MPPT trackers: 2.
- Number of strings per MPPT: 1 / 1.
- Maximum PV input current: 32 A in total, 16 A per MPPT.
- Maximum DC short-circuit current: 40 A in total, 20 A per MPPT.
- Maximum current per input connector: 20 A.
Refer to the manual for the full-load MPPT range. Exceeding the MPPT operating voltage range activates the inverter’s protection.
Battery Connection
- Battery type: compatible lithium-ion.
- Battery voltage range: 80–460 V DC.
- Maximum charging current: 30 A.
- Maximum discharging current: 30 A.
- Maximum charging and discharging power: 6,600 W.
- CAN communication available.
The battery must be selected in accordance with Sungrow’s compatibility requirements. The voltage range does not imply compatibility with every battery. Charging and discharging performance depend on the connected battery and operating conditions.
Grid Connection and AC Output
- Single-phase connection.
- Rated AC voltage: 220 / 230 / 240 V.
- AC voltage range: 154–276 V.
- Rated grid frequency: 50 / 60 Hz.
- Frequency range: 45–55 Hz at 50 Hz and 55–65 Hz at 60 Hz.
- Total current harmonic distortion: less than 3 % at rated power.
- Default power factor at rated power: greater than 0.99.
Backup Output and Off-Grid Operation
- Backup switchover time: less than 10 ms.
- Rated off-grid voltage: 220 / 230 / 240 V, with a tolerance of ±2 %.
- Rated off-grid frequency: 50 / 60 Hz, with a tolerance of ±0.2 %.
- Voltage harmonic distortion with a linear load: less than 2 %.
- Peak apparent power in off-grid mode: 8,400 VA for 10 seconds.
- Rated off-grid backup power: from 3,000 to 6,000 W, depending on the model.
- Maximum power for backup loads when the grid is available: 6,000 W, subject to the configuration specified in the manual.
- Maximum current for backup loads when the grid is available: 27.3 A, calculated at 220 V.
Backup System Sizing
The 6,000 W available for backup loads when the grid is present does not mean that all models can provide 6,000 W continuously during a power outage. Without the grid, rated power depends on the selected inverter. Actual power and backup duration also depend on the battery, its state of charge, PV generation and the loads connected to the backup output.
Integrated Protection and Functions
- Grid monitoring.
- DC reverse polarity protection.
- AC short-circuit protection.
- Leakage current protection.
- Integrated PV DC isolator.
- Type II surge protection on DC and AC sides.
- Integrated PID Zero function.
- Parallel operation at the grid port: up to 3 inverters in master-slave mode.
The specified parallel operation applies to the grid port. Optional compatibility with optimisers must be confirmed with Sungrow before ordering.
Installation and Operating Conditions
- Protection rating: IP65.
- Unit dimensions, width × height × depth: 490 × 340 × 170 mm.
- Unit weight: 18.5 kg.
- Mounting: wall-mounted using a bracket.
- Cooling: natural convection.
- Operating ambient temperature: −25 to +60 °C.
- Permissible relative humidity: 0–100 %.
- Maximum operating altitude: 4,000 m.
- Typical noise level: less than 45 dB(A).
- Transformerless topology in the PV and battery stages.
Monitoring, Communications and Connections
- Monitoring through iSolarCloud via app and web.
- Data update interval specified by the manufacturer: every 10 seconds.
- Integrated EMS with customisation options.
- Online I-V curve scanning and diagnostics.
- Digital LED display and LED indicators.
- Communications: RS485, Ethernet, WLAN and CAN.
- Inputs and outputs: 4 DI, 1 DO and DRM.
- PV connection: MC4, with a maximum cable cross-section of 6 mm².
- Battery connection: Evo2-compatible, with a maximum cable cross-section of 6 mm².
- AC connection: Plug & Play, with a maximum cable cross-section of 16 mm² for the grid connection and 6 mm² for backup.
Standards Listed in the Datasheet
IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116, IEC 61727, IEC/EN 61000-3-11, IEC/EN 61000-3-12, EN 62477-1, AS/NZS 4777.2:2020, EN 50549-1, CEI 0-21, G98 / G99, UNE 217002:2020, NTS V2 Type A and C10/26.
Sungrow Inverters for Residential Solar Self-Consumption with Energy Storage
The Sungrow SHRS range combines PV conversion, battery connection and backup power in a compact unit. Its five models allow AC power to be matched to the project, while retaining two independent MPPTs, integrated energy management and monitoring through iSolarCloud.
At Vico Export Solar Energy, we supply Sungrow inverters and photovoltaic equipment to installers, engineering firms and distributors, with domestic and international shipping. Contact our team to discuss availability, battery compatibility and supply terms.
Datasheet and Enquiries
Explore the features of each model and the technical specifications of the Sungrow SHRS range.
