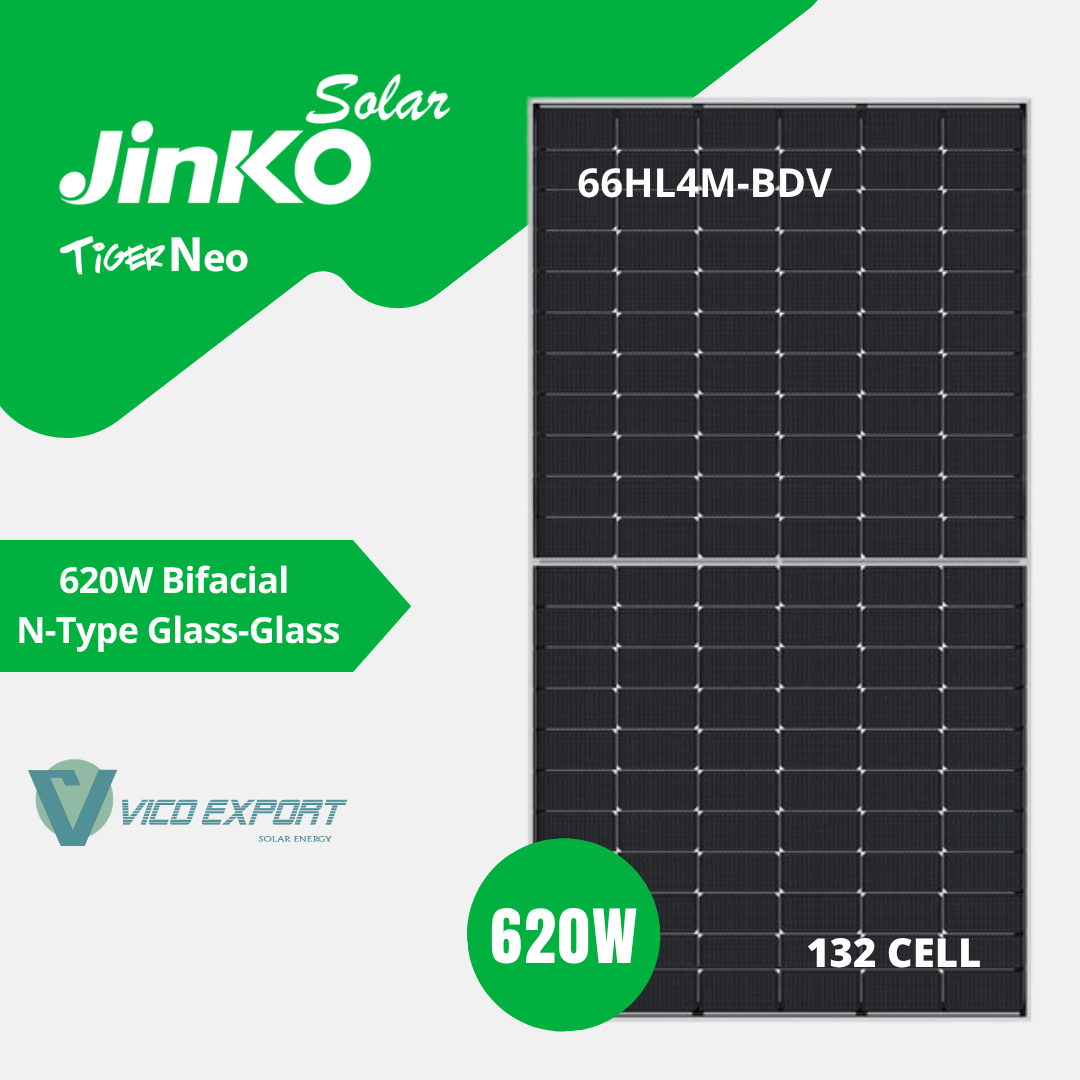

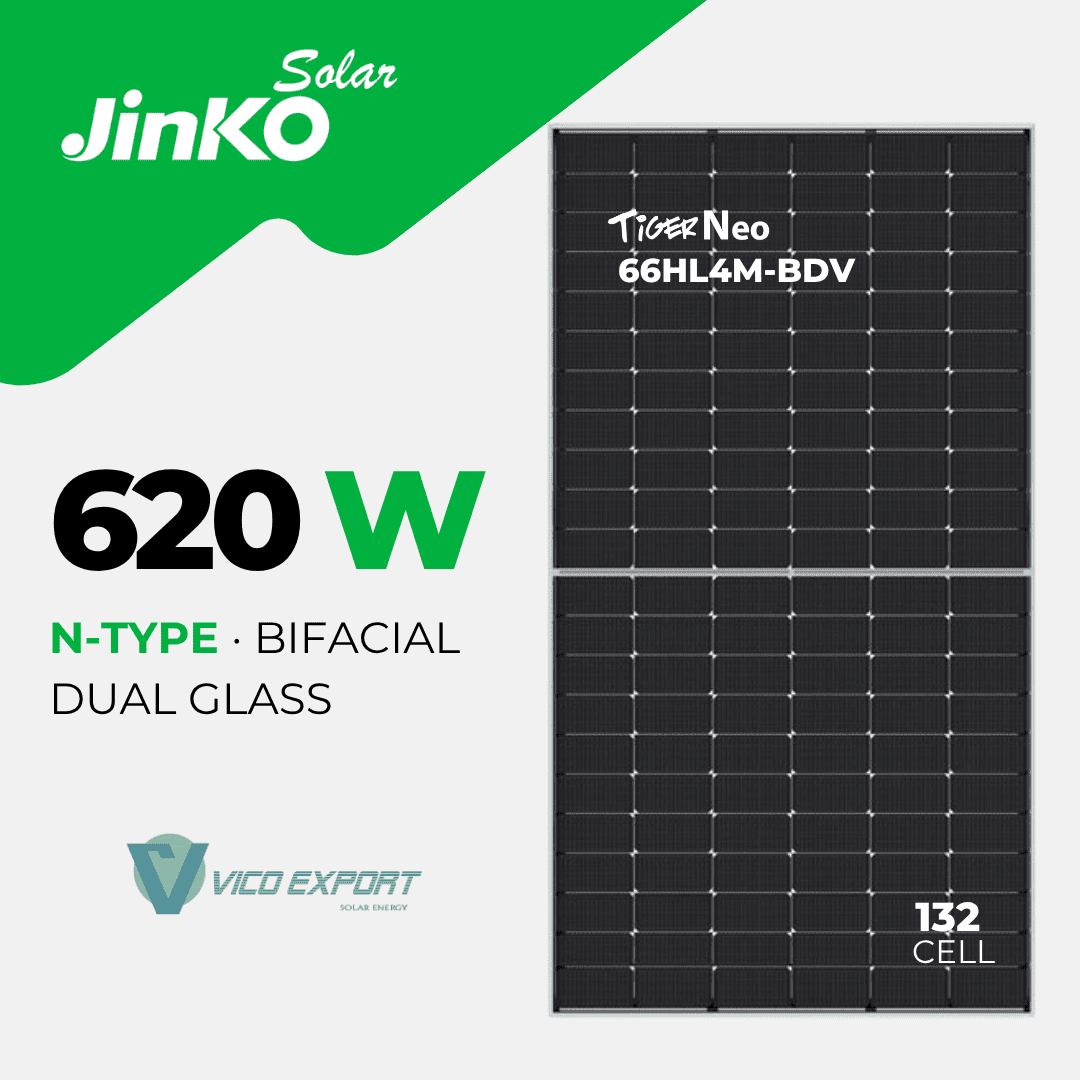

JinkoSolar Tiger Neo N-Type 620W Solar Panel | JKM620N-66HL4M-BDV
The JinkoSolar Tiger Neo N-Type 620W JKM620N-66HL4M-BDV solar panel is a bifacial dual-glass photovoltaic module designed for commercial and industrial installations and large-scale projects. It incorporates N-Type monocrystalline cells with HOT 2.0 technology and achieves an efficiency of 22.95%.
Its bifacial design generates energy from solar irradiation received on both the front and rear sides. The combination of N-Type cells, SMBB technology and a dual-glass structure delivers high energy output, resistance to PID degradation and greater long-term reliability.
KEY FEATURES
- 620 W rated power: high power output for commercial and industrial installations and utility-scale photovoltaic plants.
- N-Type HOT 2.0 technology: provides greater reliability and reduced LID and LeTID degradation.
- Bifacial design: harnesses the irradiation received on the rear side of the module to increase energy production.
- Dual-glass construction: a robust configuration designed to improve the module’s durability and protection.
- SMBB technology: improves light capture and current collection to optimise power output and reliability.
- PID resistance: optimised materials and manufacturing processes provide excellent anti-PID performance.
- Enhanced mechanical resistance: certified to withstand snow loads of up to 5,400 Pa and wind loads of up to 2,400 Pa.
TECHNICAL SPECIFICATIONS
Electrical data under STC
- Maximum power (Pmax): 620 Wp
- Maximum power voltage (Vmp): 40.74 V
- Maximum power current (Imp): 15.22 A
- Open-circuit voltage (Voc): 49.08 V
- Short-circuit current (Isc): 16.08 A
- Module efficiency: 22.95%
- Power tolerance: 0/+3%
- Maximum system voltage: 1,500 V DC
- Maximum series fuse rating: 35 A
Electrical data under NOCT
- Maximum power (Pmax): 468 Wp
- Maximum power voltage (Vmp): 38.25 V
- Maximum power current (Imp): 12.24 A
- Open-circuit voltage (Voc): 46.62 V
- Short-circuit current (Isc): 12.98 A
Mechanical data
- Cell type: N-Type monocrystalline
- Number of cells: 132 cells (2 × 66)
- Dimensions: 2,382 × 1,134 × 30 mm
- Weight: 33.4 kg
- Front glass: 2.0 mm with anti-reflective coating
- Rear glass: 2.0 mm heat-strengthened glass
- Frame: anodised aluminium alloy
- Junction box: IP68 rated
- Cable cross-section: 4.0 mm²
- Cable length: 400 mm positive and 200 mm negative, or customised length
Temperature coefficients
- Temperature coefficient of Pmax: -0.29%/°C
- Temperature coefficient of Voc: -0.25%/°C
- Temperature coefficient of Isc: +0.045%/°C
- Nominal operating cell temperature (NOCT): 45 ± 2°C
- Operating temperature range: -40°C to +85°C
- Reference bifacial factor: 80 ± 5%
WARRANTY AND DEGRADATION
- Product warranty: 12 years
- Linear power warranty: 30 years
- Guaranteed power after the first year: 99%
- Annual degradation: 0.40%
- Guaranteed power at the end of year 30: 87.4%
ADDITIONAL BENEFITS
The JinkoSolar Tiger Neo 620W combines high power output, N-Type technology, bifacial energy production and dual-glass construction. Its format helps optimise installed capacity and reduce the number of modules required in commercial, industrial and utility-scale projects.
