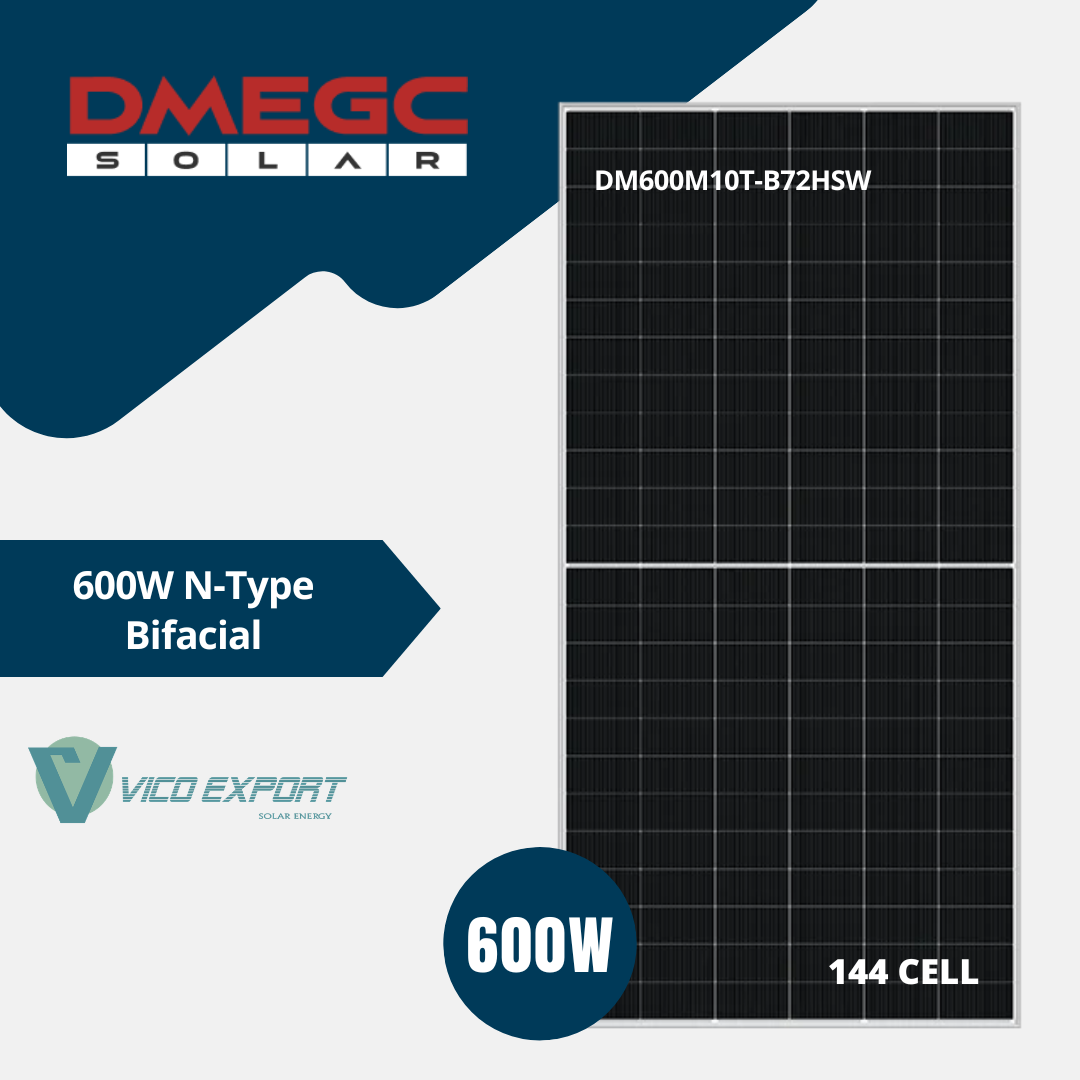

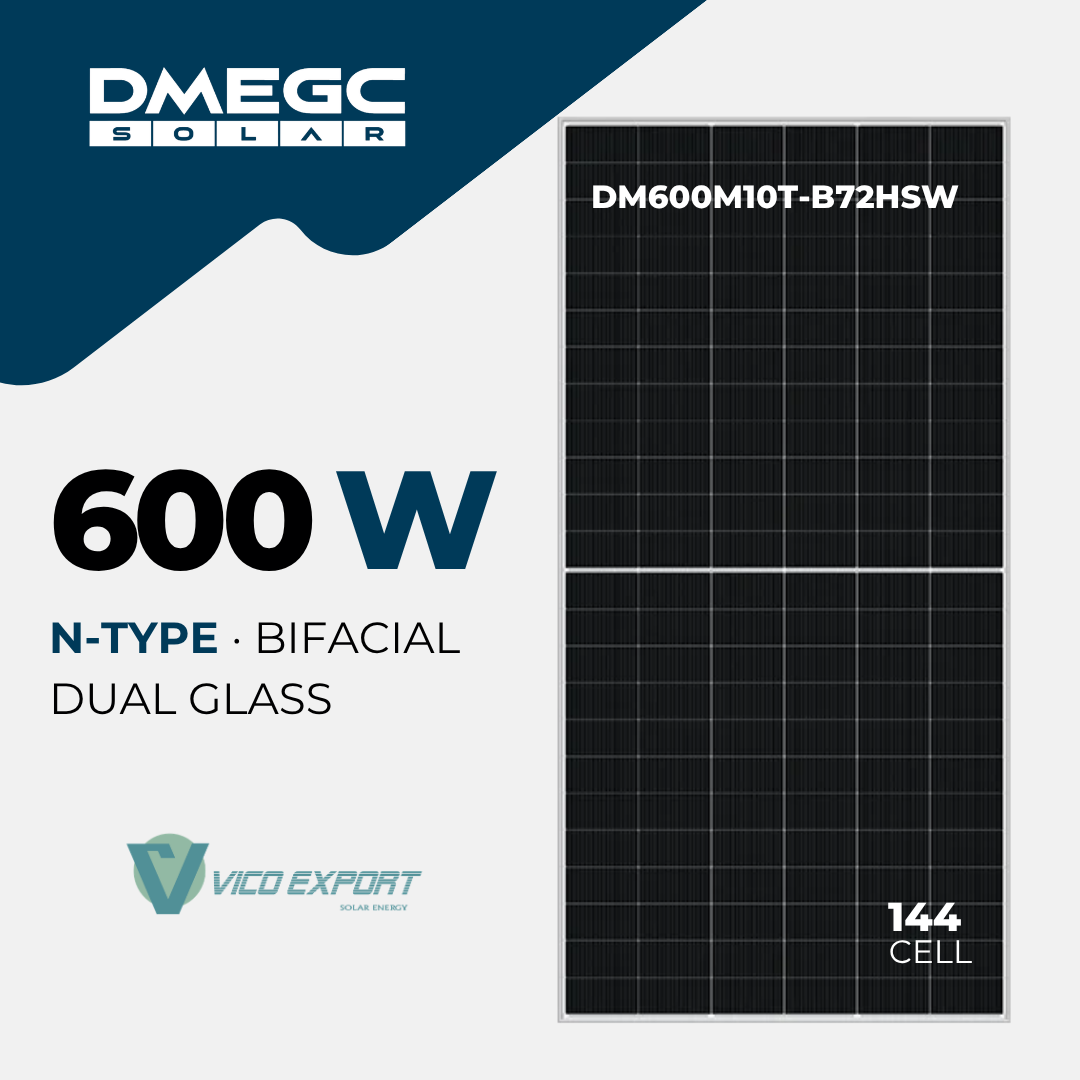

600W DMEGC Bifacial N-Type | Infinity Series DM600M10T-B72HSW
The 600W DMEGC DM600M10T-B72HSW solar panel belongs to the Infinity series and is designed for commercial and industrial photovoltaic installations, as well as utility-scale projects requiring high module power, bifacial technology and mechanical reliability under demanding conditions. It incorporates N-type monocrystalline cells in a 144-cell format, with bifacial double-glass architecture and a module efficiency of 23,2% under STC conditions.
Its construction with 2 mm front and rear semi-tempered glass enables power generation from both sides of the module, improving energy yield on reflective rooftops, elevated structures or ground-mounted solar plants. The N-Type design reduces degradation losses and offers a 30-year linear power warranty, with initial degradation of ≤1% in the first year and annual degradation of ≤0,4%, maintaining 87,4% of power output in year 30.
The module is aimed at projects where levelized cost of energy, BOS optimization and long-term durability are key factors. It features an IP68 junction box, PV-ZH202B or MC4-EVO 2A compatible connectors at 1500V, a maximum system voltage of 1500V DC and mechanical test loads of up to 5400 Pa on the front side and 2400 Pa on the rear side.
TECHNICAL SPECIFICATIONS
Electrical Data (STC):
- Nominal Power (Pmax): 600 W
- Optimum Operating Voltage (Vmp): 44,61 V
- Optimum Operating Current (Imp): 13,47 A
- Open Circuit Voltage (Voc): 53,30 V
- Short Circuit Current (Isc): 14,23 A
- Module Efficiency: 23,2%
- Power Tolerance: 0~3%
Mechanical Data:
- Cell Type: N-type monocrystalline
- Cell Arrangement: 144 cells, 6×24
- Dimensions: 2278×1134×30 mm
- Weight: 31,8 kg
- Front Glass (monofacial) and Rear Glass (if bifacial): 2 mm semi-tempered front glass and 2 mm semi-tempered rear glass
- Junction Box: 3 diodes, IP68 according to IEC 62790
- Connectors: PV-ZH202B or MC4-EVO 2A (1500V)
- Cables: 4 mm² / Vertical: 350 mm (+) / 250 mm (-). Horizontal: 1300 mm (+) / 1300 mm (-). Customized length
Temperature Conditions:
- Pmax: -0.29 %/°C
- Voc: -0.25 %/°C
- Isc: +0.048 %/°C
ADDITIONAL BENEFITS
- International Certifications: IEC 61215, IEC 61730, IEC TS 63209, IEC 62716, IEC 61701, IEC TS 63342, IEC 60068. Certified by TÜV Rheinland
- Extended Warranty: 15-year product warranty and 30-year linear power warranty.
